Page 6
START
(J) 24 Ks2 (red-yellow-orange) low-
noise ,
( ) 470 KS/ (yellow-violet-yellow)
low-noise
(J) 6800 st (blue-gray-red).
(\,) 10 Ks2 (brown-black-orange).
( ) 5600 st (green-blue-red).
( ', ) 5600 S2 (green-blue-red).
(1 ) 1000 st (brown-black-red).
(', 4700 S2 (yellow-violet-red).
) Solder all connections and cut
off excess lead lengths.
( ) 15 KS/ (brown-green-orange).
(„) 2700 st (red-violet-red).
(v ) 22 Ks2 (red-red-orange).
( ) 2200 st (red-red-red).
(1) 33 KS2 (orange-orange-orange).
/
(/) 1000 S/ (brown-black-red).
(I ) 91 st (white-brown-black) low-
noise resistor.
(,i) 1 12 2 watt (brown-black-gold).
( ) Solder all connections and cut off
excess lead lengths.

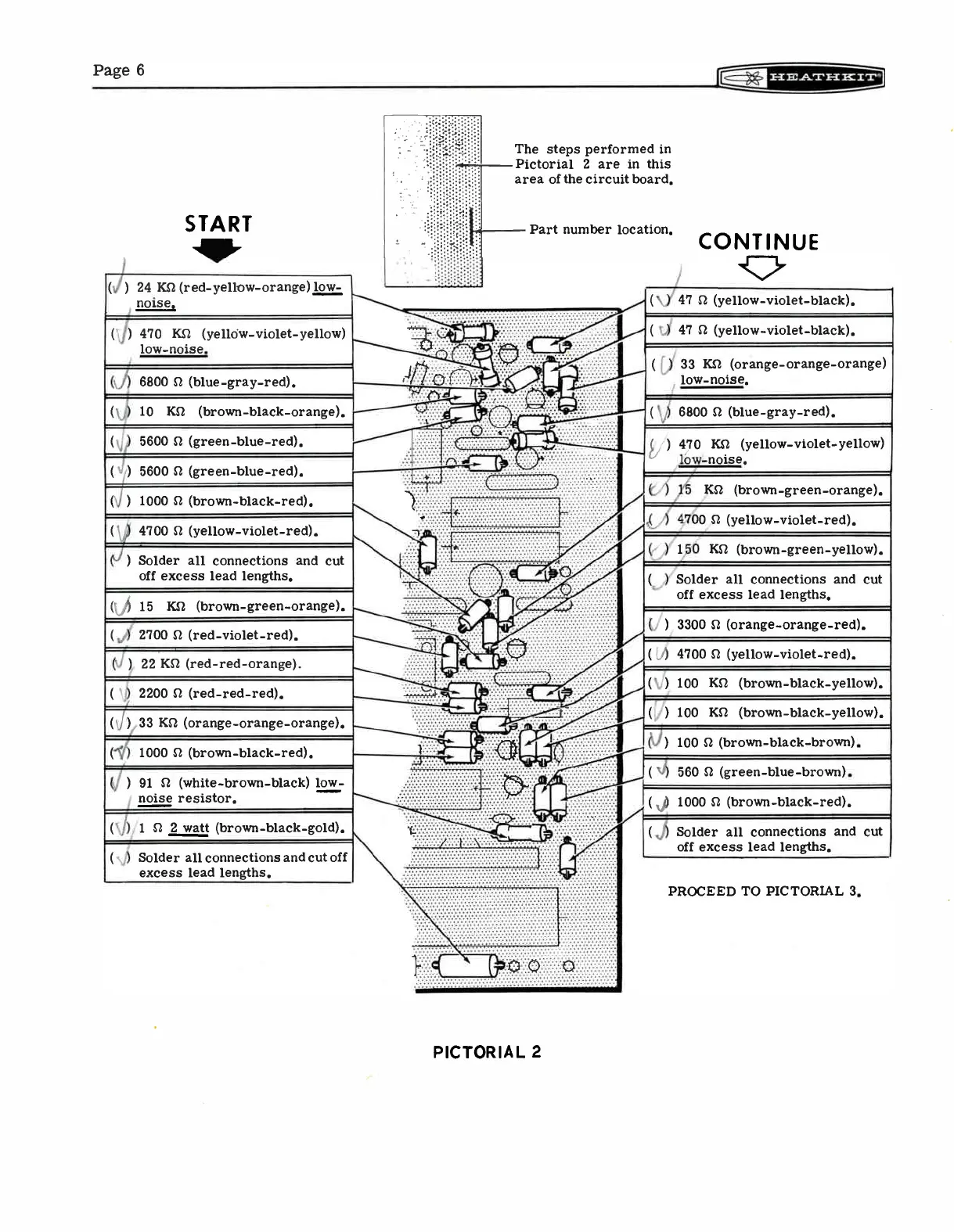

PICTORIAL 2
The steps performed in
Pictorial 2 are in this
area of the circuit board.
Part number location.
CONTINUE
,(\y 47 st (yellow-violet-black).
. ( '.) 47 st (yellow-violet-black).
( ) 33 Ks2 (orange-orange-orange)
low-noise.
(\) 6800 52 (blue-gray-red).
( ) 470 Ks2 (yellow-violet-yellow)
' low-noise.
L ) 15 KS2 (brown-green-orange).
,( ) 4700 SZ (yellow-violet-red).
( ) 150 Kst (brown-green-yellow).
( ) Solder all connections and cut
off excess lead lengths.
( ) 3300 st (orange -orange -red).
( ) 4700 st (yellow-violet-red).
C ) 100 KSZ (brown-black-yellow).
( ) loo Ks2 (brown-black-yellow).
0, loo st (brown-black-brown).
( )) 560 st (green-blue-brown).
() 1000 st (brown-black-red).
() Solder all connections and cut
off excess lead lengths.
PROCEED TO PICTORIAL 3.
