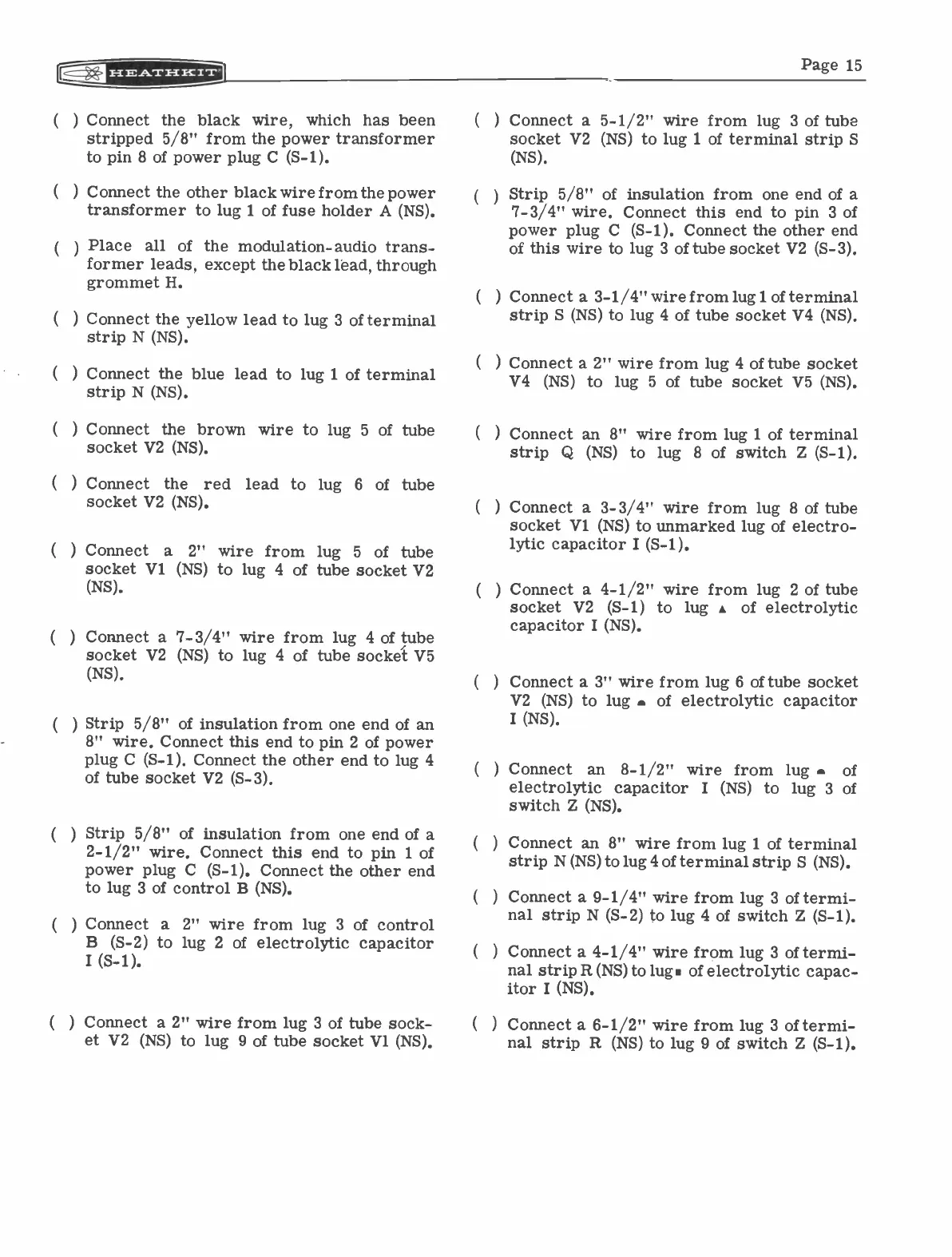

Page 15
Connect the black wire, which has been
stripped 5/8" from the power transformer
to pin 8 of power plug C (S-1).
Connect the other black wire from the power
transformer to lug 1 of fuse holder A (NS).
Place all of the modulation -audio trans-
former leads, except the black lead, through
grommet H.
Connect the yellow lead to lug 3 of terminal
strip N (NS).
Connect the blue lead to lug 1 of terminal
strip N (NS).
Connect the brown wire to lug 5 of tube
socket V2 (NS).
Connect the
red lead to lug 6 of tube
socket V2 (NS).
(
) Connect a
2" wire from lug 5
of tube
socket V1 (NS) to lug 4 of tube socket V2
(NS).
(
) Connect a 7-3/4" wire from lug 4 of tube
socket V2 (NS) to lug 4 of tube socket V5
(NS).
) Strip 5/8" of insulation from one end of an
8" wire. Connect this end to pin 2 of power
plug C (S-1). Connect the other end to lug 4
of tube socket V2 (S-3).
) Strip 5/8" of insulation from one end of a
2-1/2" wire. Connect this end to pin 1 of
power plug C (S-1). Connect the other end
to lug 3 of control B (NS).
) Connect a 2" wire from lug 3 of control
B (S-2) to lug 2 of electrolytic capacitor
I (S-1).
(
) Connect a 2" wire from lug 3 of tube sock-
et V2 (NS) to lug 9 of tube socket VI (NS).
Connect a 5-1/2" wire from lug 3 of tube
socket V2 (NS) to lug 1 of terminal strip S
(NS).
) Strip 5/8" of insulation from one end of a
7-3/4" wire. Connect this end to pin 3 of
power plug C (S-1). Connect the other end
of this wire to lug 3 of tube socket V2 (S-3).
( ) Connect a 3-1/4" wire from lug 1 of terminal
strip S (NS) to lug 4 of tube socket V4 (NS).
(
) Connect a 2" wire from lug 4 of tube socket
V4 (NS) to lug 5 of tube socket V5 (NS).
( ) Connect an 8" wire from lug 1 of terminal
strip Q (NS) to lug 8 of switch Z (S-1).
(
) Connect a 3-3/4" wire from lug 8 of tube
socket V1 (NS) to unmarked lug of electro-
lytic capacitor I (S-1).
( ) Connect a 4-1/2" wire from lug 2 of tube
socket V2 (S-1) to lug
of electrolytic
capacitor I (NS).
( ) Connect a 3" wire from lug 6 of tube socket
V2 (NS) to lug . of electrolytic capacitor
I (NS).
Connect an 8-1/2" wire from lug
of
electrolytic capacitor I
(NS) to lug 3 of
switch Z (NS).
Connect an 8" wire from lug 1 of terminal
strip N (NS) to lug 4 of terminal strip S (NS).
) Connect a 9-1/4" wire from lug 3 of termi-
nal strip N (S-2) to lug 4 of switch Z (S-1).
Connect a 4-1/4" wire from lug 3 of termi-
nal strip R (NS) to lug of electrolytic capac-
itor I (NS).
(
) Connect a 6-1/2" wire from lug 3 of termi-
nal strip R (NS) to lug 9 of switch Z (S-1).
