Interface
Only Hei-TORQUE Precision
You can connect the stirrer to a PC via the interface. Two serial interfaces are located on
the back of the device. (Operation: see separate manual)
The following interfaces are available:
▪ USB interface: Micro USB type AB
▪ RS232 interface, SUB D9
You can connect the device either via USB
or via the RS232 interface.
Up to 4 overhead stirrers can be driven via
numerous PC interfaces.
➜ Close the dust protection cap on the
interface if not in use.

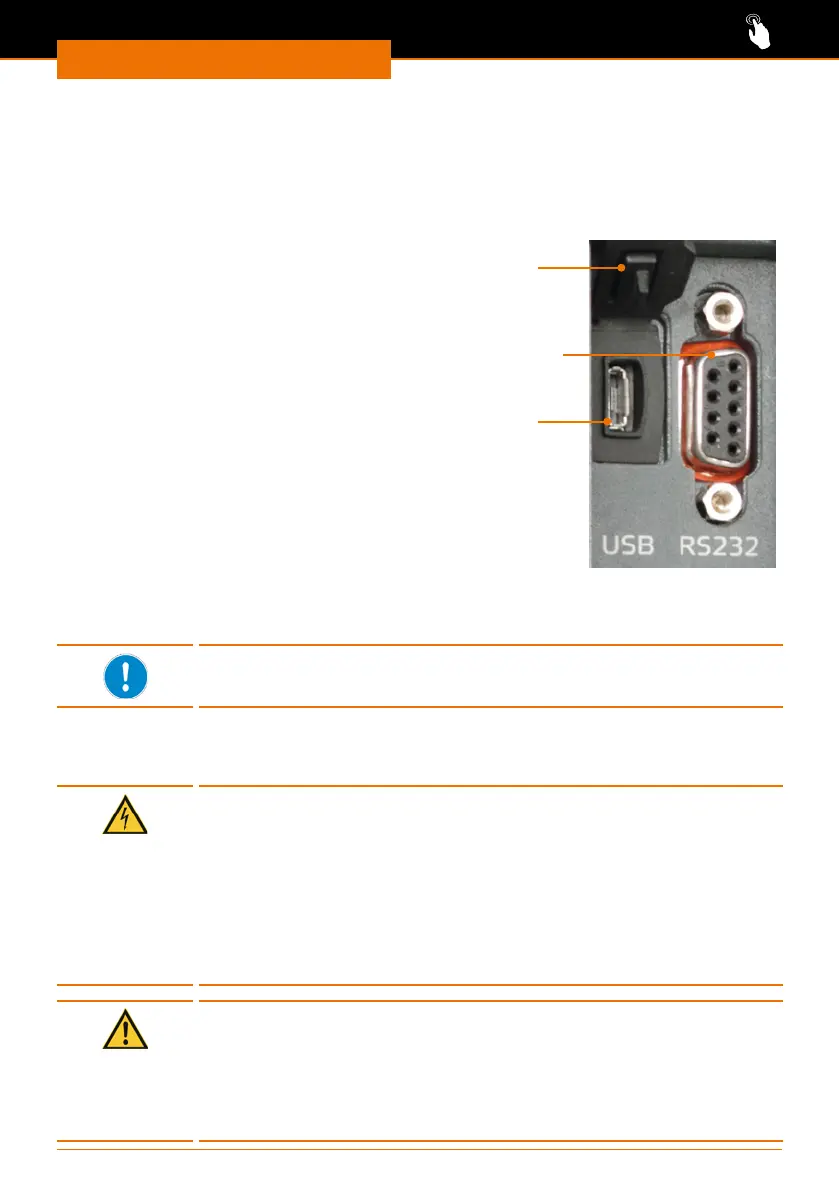

USB interface
RS232 interface
USB interface dust
protection cap
Software
Installation and operation of the software program is described in a separate manual.
Utilize USB-Port according to USB 2.0 Spec. up to 500 mA maximum.
Connecting and linking interfaces
Warnung:
Danger of electric shock!
If the interface inputs and outputs are supplied with excessively high
voltage and are not suciently insulated, in the event of a fault,
metallic parts (e.g. the housing), will be electried.
Voltage inputs and outputs above 25 V AC or 60 V DC are deemed safe
if separated according to DIN EN 61140, or by double or reinforced
insulation in accordance with DIN EN 60730-1 or DIN 60950-1.
Only use shielded connection cables. Connect shield to connector case.
Caution:
Possible damage of device
If device sockets are not covered, uids can get in contact with
Interface connectors. Penetrating uids can lead to malfunctions of
interface connection and could initiate a short circuit.
Sockets at the backside of device must be covered at all times.
