Assembly
45
Support rod and quick chuck
Mounting the support rod
The support rod allows you to attach the
stirrer to a stand or to a wall grid. (see
chapter “Accessories and spare parts,
Accessories”).

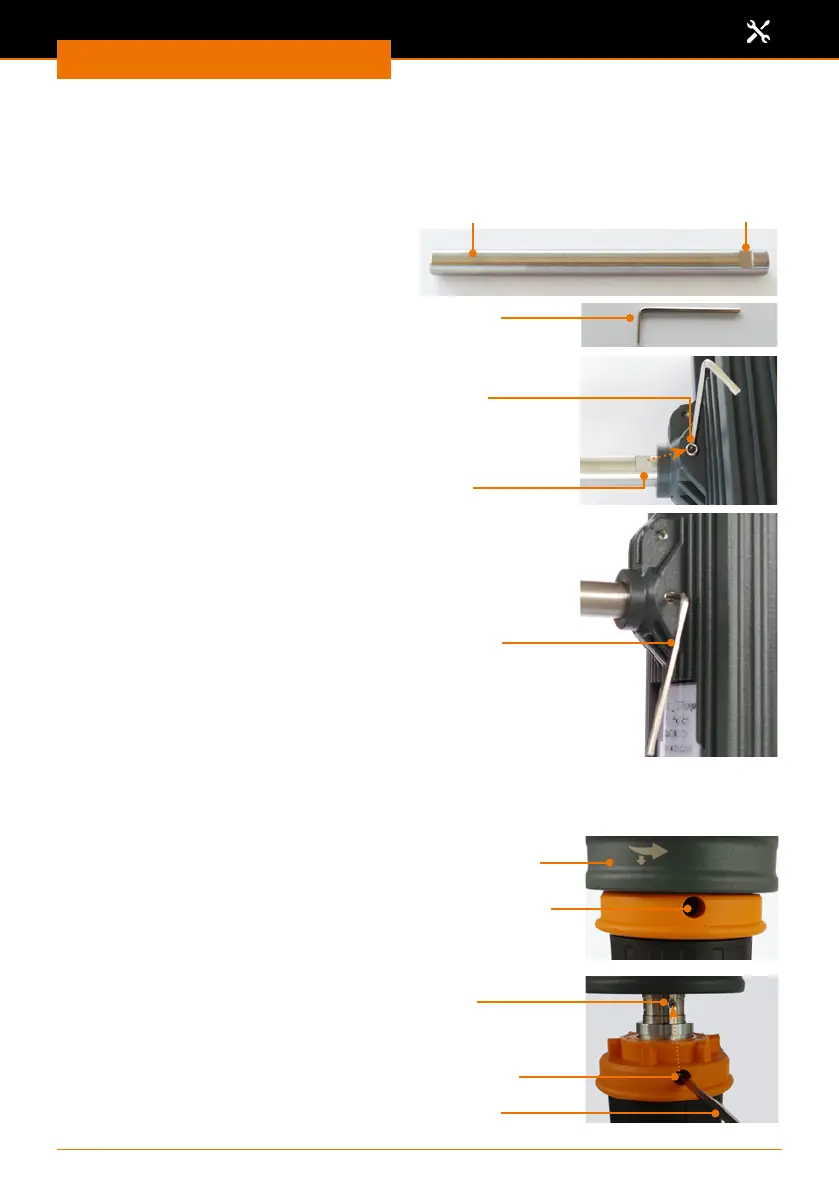

Scope of delivery:
▪ Support rod
▪ Allen key
Support rod Notch
Allen key
On the back of the device you will nd a
slot for the support rod.
➜ Push the support rod into the slot on
the back of the device with the notch
facing the front.
➜ Make sure that the notch on the
support rod aligns with the grub screw
in the housing.
Notch
Grub screw
housing
➜ Secure the support rod using the Allen
key provided.
Allen key
Mounting the quick chuck
➜ Remove the impeller, if currently in
place.
➜ Close the quick chuck and push the
safety ring up into the top position.
Safety ring
upper position
Grub screw
➜ Slightly loosen the grub screw located
in the orange ring using the Allen key.
➜ Pull the quick chuck down to remove.
➜ When re-mounting, ensure the grub
screw aligns with the recess.
Recess for grub
screw
Allen key
Grub screw
