Heidolph Hei-TORQUE Value Series User Manual

Dismantling and Storage
46
 Shaft guard

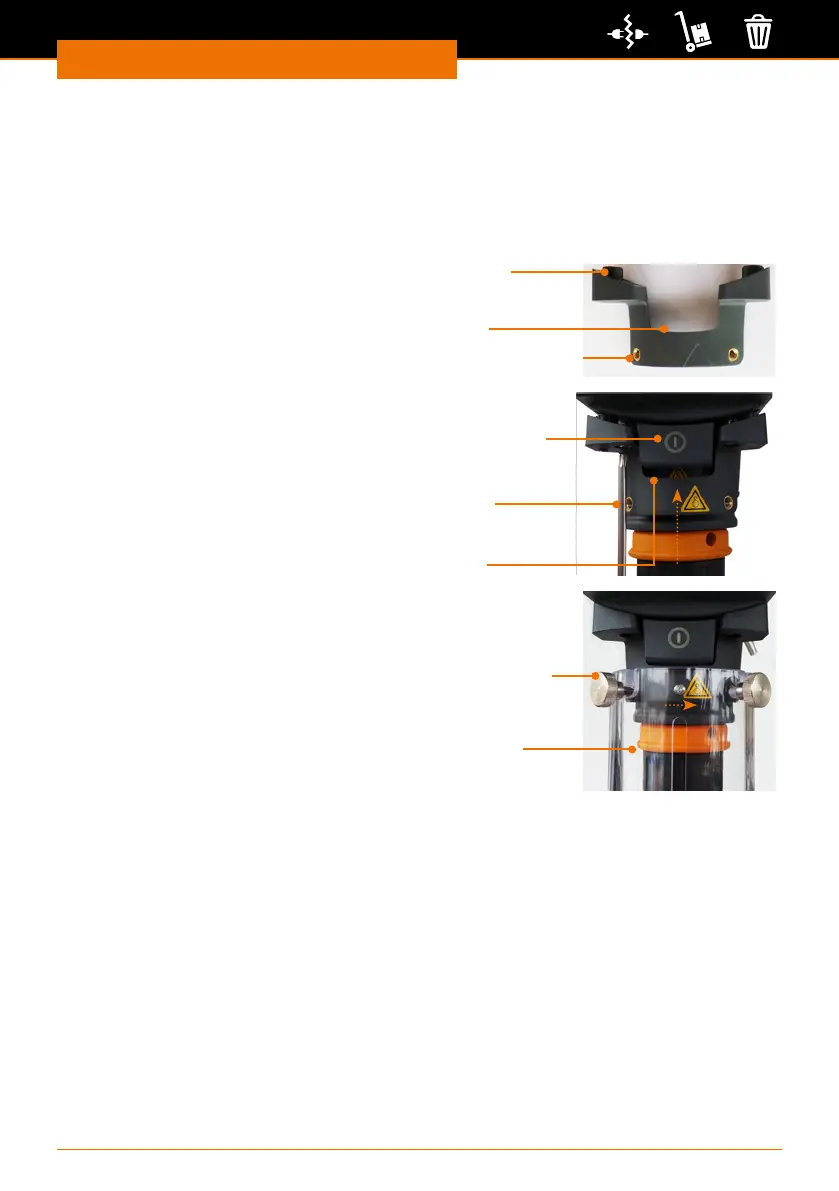

Installing the shaft guard (optional accessory)
A shaft guard can be attached to prevent injuries caused by rotating parts of the impeller
(see chapter “Accessories and spare parts, Accessories”).
Scope of delivery:
▪ 1 x adaptor
▪ 2 x torx screws
▪ 1 X torx key
▪ 1 x shaft guard
▪ 2 x knurled screws
Metal screw thread
Guide aids
Cut-out
Adapter
➜ Push the adapter up with the cut-out
around the ON/OFF switch.
✓ The two guide aids t into the holes on
the left and right and ensure correct
tting.
➜ Attach the adapter using the two Allen
screws and Allen key provided and
tighten them rmly.
Cut-out
ON/OFF switch
Torx key
➜ Attach both of the knurled screws to
the hole on the adapter and tighten
them 2 - 3 turns.
➜ Push the grooves on the shaft guard
over the knurled screws until the
screws reach the end of the groove.
Now turn the shaft guard clockwise to
the end of the groove.
➜ Carefully tighten both of the knurled
screws to hold the shaft guard in
place.
Shaft guard
Knurled screws
Removing the shaft guard
➜ Unscrew both of the knurled screws holding the shaft guard to the adapter 1 - 2
turns.
➜ Turn the shaft guard slightly counterclockwise and remove it downwards from the
stirrer.
