Transportation safety device
The motor lift units have a transportation safety device, which must be removed prior
to the initial start-up of the unit or reattached prior to the return shipment. This is very
important in shipping any return or repair of motor lift unit to make sure transport lock is
assembled.
A brief description of the procedure for removing and reattaching the transportation
safety device may be found in the following.
The transportation safety device consists of three M5x8 screws and a connecting plate
with holes for xing the position.
1 2
3
4
5

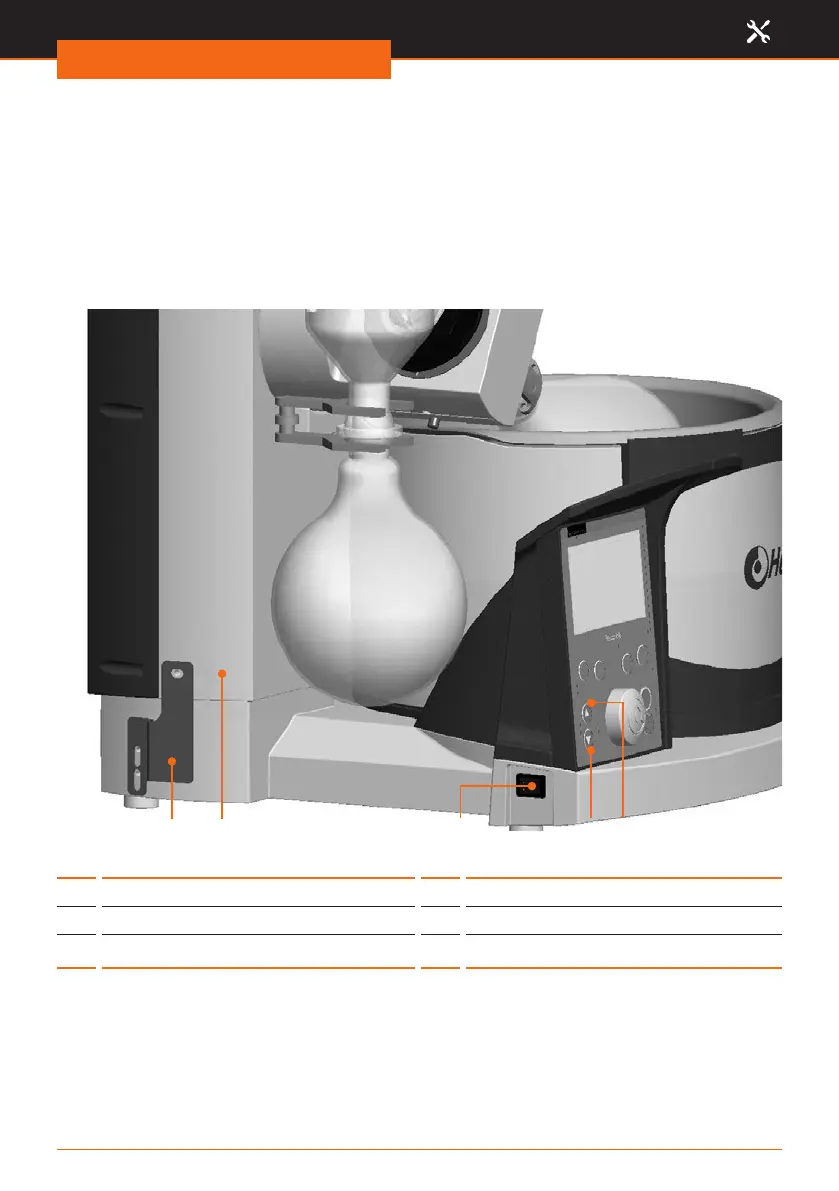

Figure 4-1: Transportation safety device
1 Transportation safety device 4 Button - lift down
2 Front shell of lift 5 Button - lift up
3 Power switch
Removing the transportation safety device
✓ All hose and cable connections to other devices, and the coolant/vacuum connection
are disconnected.
✓ Connect the unit and set the power switch (3) at on.
1. Remove the top screw (in the front shell of the lift (2)) and the lower screw of the
transportation safety device (1) in the switched state. Never tighten in the top
position!
