Assembly
73

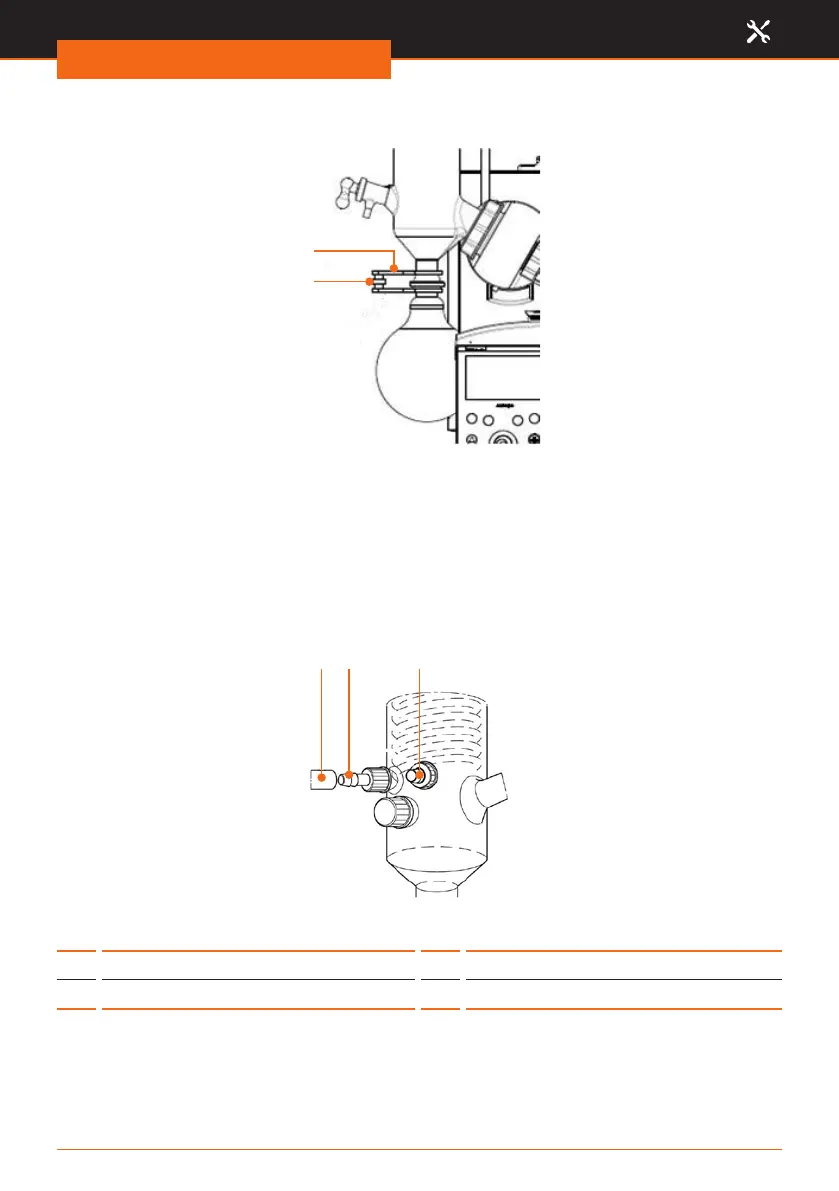

Assemble the collecting ask
2
1
1. Hold the receiving ask with the ball-socket clamp KS 35 (1) to the condenser.
2. Secure with a knurled head screw (2).
✓ The socket joint of the receiving ask is attached to the ball joint of the condenser via
pinch clamp KS 35.
Connect the cooling medium (except G5)
➜ Use a suitable tube with an inner diameter of 7-8 mm (i.e. hose set (see accessories
10.2))
1 2 3
Figure 4-17: Connect the coolant
1 Tube (coolant inlet) 3 Return (GL hose barb)
2 Connectors (GL hose barb)
1. Push the tube (coolant supply) (1) onto the hose barb of the inlet connector. Pro-ceed
accordingly with the return hose barb (3) of the coolant.
2. Secure with hose clamps.
✓ Feed and return of the coolant are connected by screwing caps onto glass threads.
