Assembly
80
Accessories
Schutzhaube
1
2
35
4
6

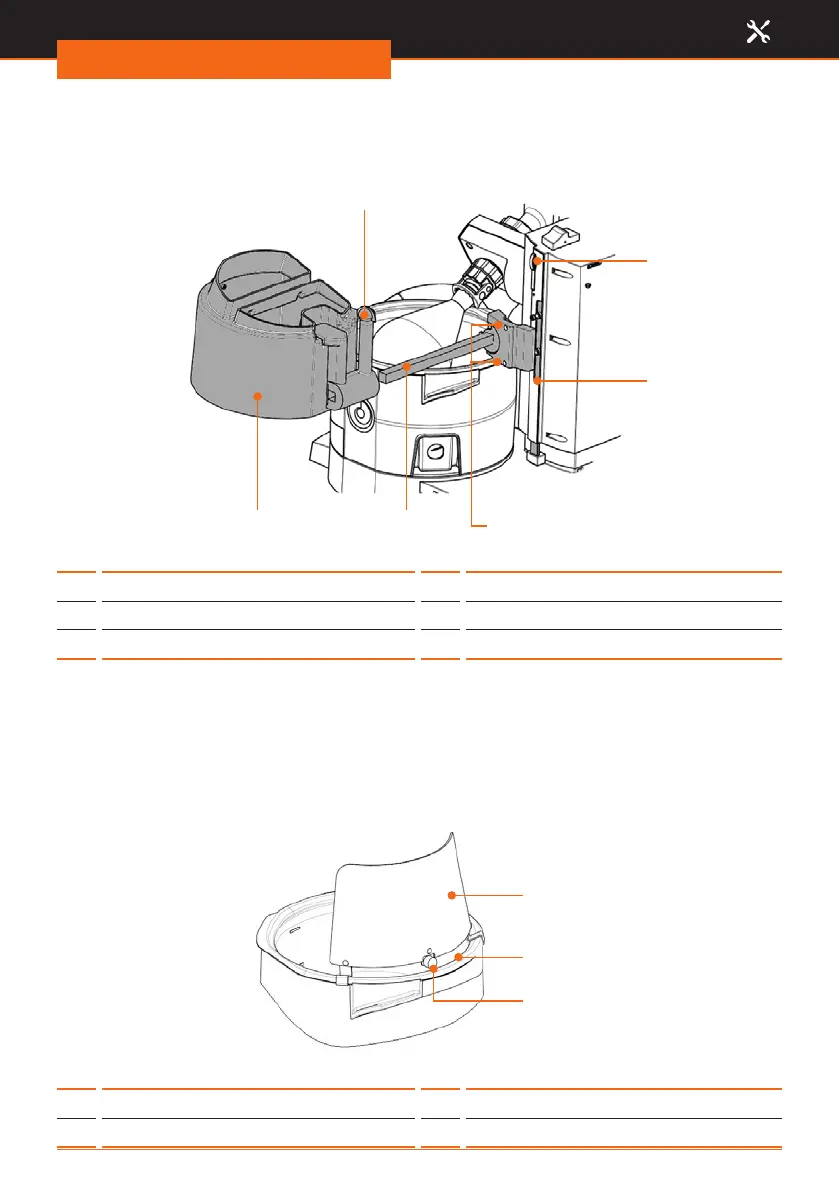

Figure 4-27: Assemble the protective cover
1 Height stop 4 Lock screw
2 Allen screws 5 Protective hood
3 Support cover 6 Height stop lock
1. Screw the support cover (3) to the height stop (1) by using the two enclosed Allen
screws (2).
2. Release the clamping screw (4) and align the cover (5) over the heating bath by
shifting horizontally.
3. Tighten the clamping screw
✓ The cover is assembled. The cover can be opened by the handle.
Protective shield
1
3
2
Figure4-28: Assemble the protective shield
1 Protective shield 3 Eccentric screw
2 Heating bath
