Assembly
63
4. Remove the screw coupling connection of the vapor tube (Figure 4-7 (6) from the
drive unit.
5. Pull out the clamping sleeve (Figure 4-7 (5).
6. Push the vapor tube coupling clamp (Figure 4-7 (6)) and clamping sleeve (Figure
4-7 (5)) with the bead rst to the vapor tube (Figure 4-7 (7)). Verify that the bead
audibly snaps into the groove of the vapor tube (Figure 4-7 (7)).
7. Push the vapor tube (Figure 4-7 (7) into the drive unit with the pre-assembled parts.
8. Continue to press the locking button (Figure 4-8 (1)).
9. Manually tighten the vapor tube coupling clamp (Figure 4-7 (6)) with the threaded
connection of the motor drive (Figure 4-7 (4)) till a tight connection is made.
1
2

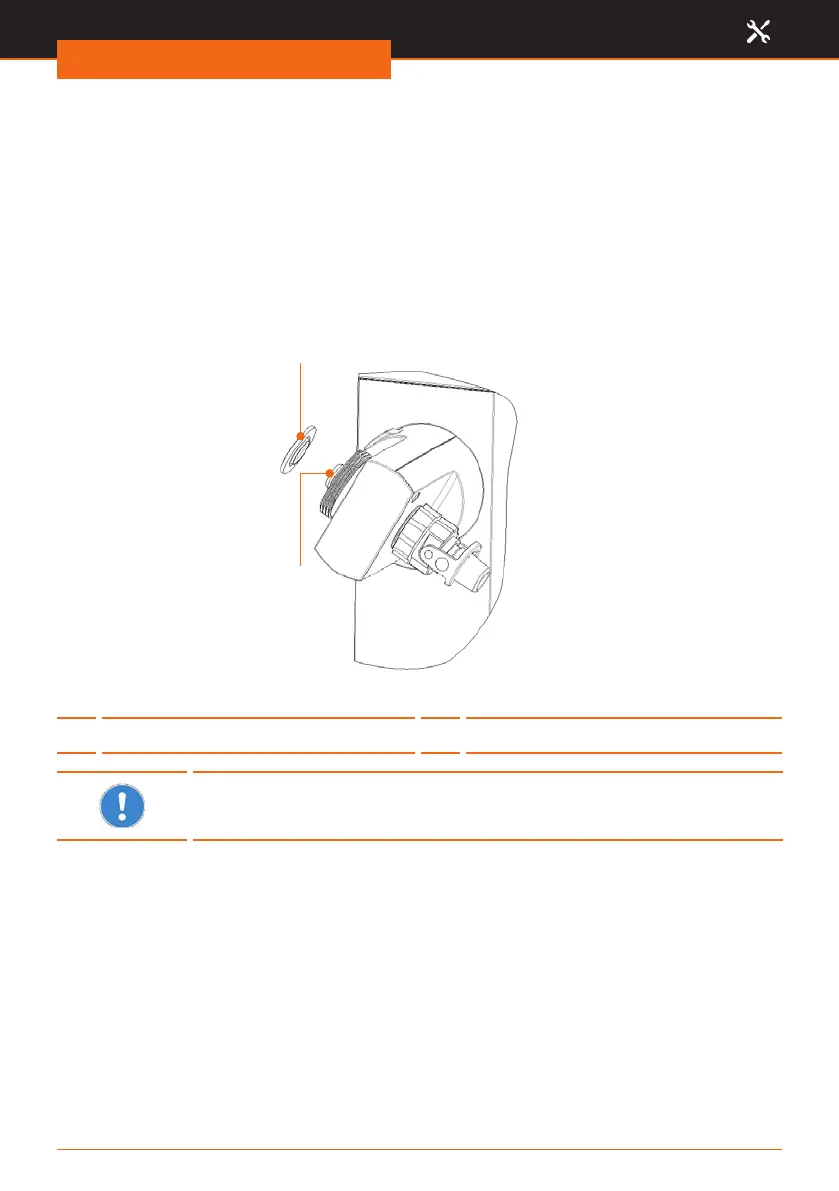

Abbildung 4-9: Aufsetzen PTFE-Dichtung auf Dampfdurchführung
1 PTFE vacuum seal 2 Vapor tube
Do not bend the PTFE 26 vacuum seal or scratch it with pointed
ngernails.
10. Push the PTFE 26 vacuum seal (1) onto the vapor tube (2) with the sealing lip in front
(labeling on the Motor side... in the direction of the drive unit).
Install the condenser
✓ The threaded clamping screw is removed from the drive head.
✓ Spring is removed from the drive head.
✓ The vapor tube is installed on the drive.
✓ PTFE 26 vacuum seal is installed on the vapor tube.
✓ Support rod is installed.
