The plug sockets are located on the back of the unit.
✓ The unit is switched off.
✓ The heating bath is installed on the base console.
1 2 3

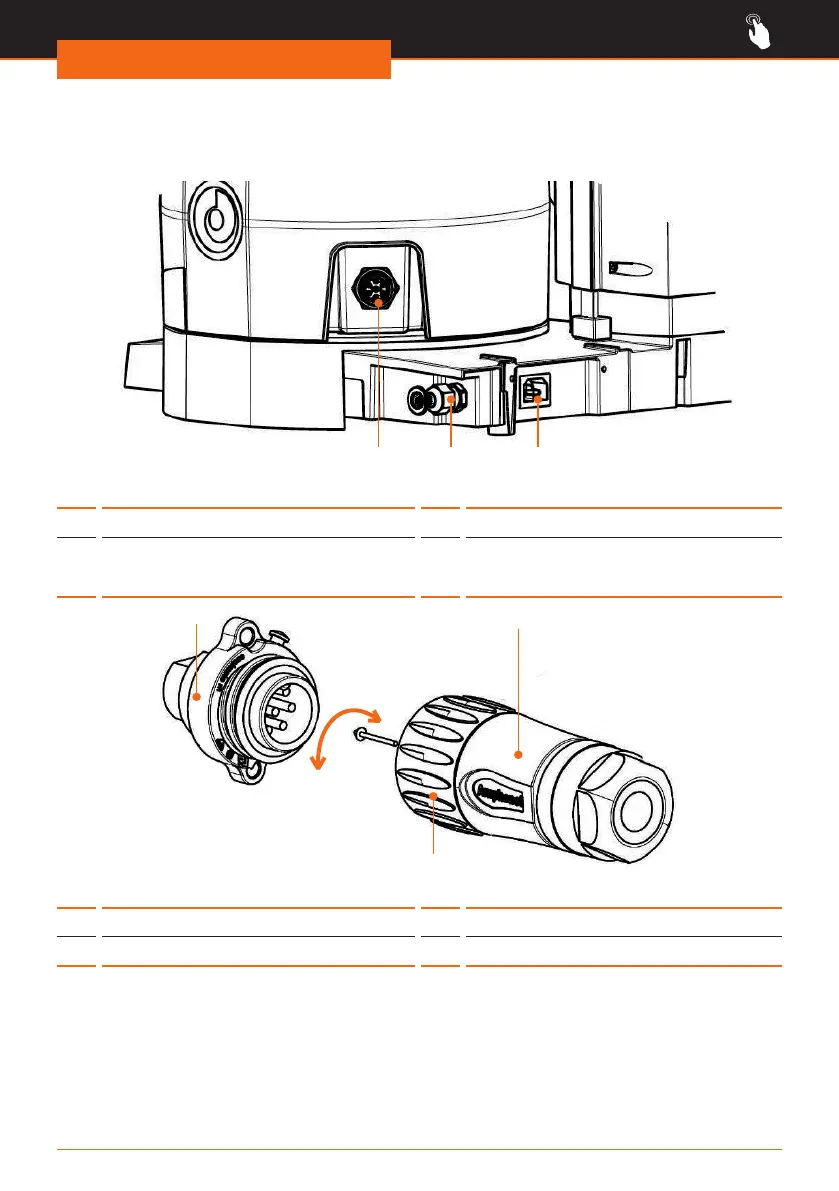

Figure 4-3: Connections
1 Heating bath unit plug 3 Power supply connector
2 Heating bath connecting line
(symbolically without a cable and
connector)
1
2
3
Figure 4-4: Heating bath connector
1 Unit plug 3 Cap nut
2 Connector
1. Plug the socket of the heating bath connecting cable (2) of the Hei-VAP base into the
appropriate connector (1).
2. Plug the socket (2) with the cap nut (3) of the heating bath connecting cable (7-pin)
into the heating bath:
▪ Press the socket into the connector so that the locking stub ts into the groove.
▪ Grab the socket (2) on the cap nut (3) and turn the knurled nut clockwise to x it.
3. Plug the power supply cable into the power supply plug on the back panel of the base
unit.
4. Connect the power cable to the power supply.
