Set-up and Start-up
Hei-VAP Value, Hei-VAP Advantage 19
EN
4.4.6 Operating the lift
In order to be able to control the immersion depth of the evaporator flask, the height of
the drive unit must be adjusted.
Only immerse the flask so far in the heating bath, so that it does
not contact the edge or the bottom of the bath.
Version Hei-VAP Value, Hei-VAP Advantage, Hei-VAP Precision (hand lift)

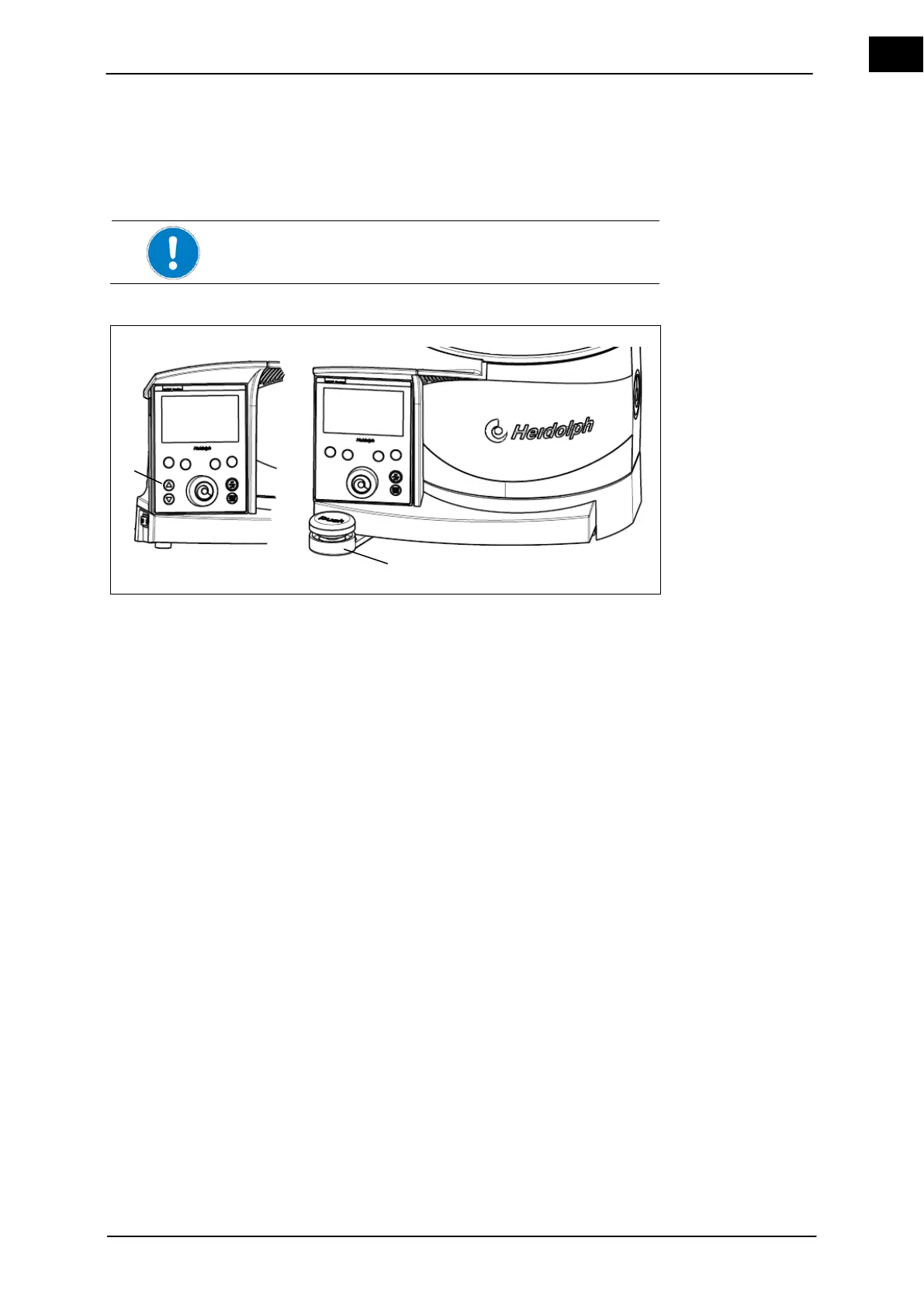

Figure 4–5: Hand/motor lift
1
Hand lift
2
Motor lift arrow keys
Hand lift version Hei-VAP Advantage, Hei-VAP Precision
1. Push the hand lift (1) down and shift to the left (lower) or right (upward) while keep-
ing the handle depressed.
2. Release the hand lift (1) at the desired position.
The drive unit snaps into the appropriate position when released.
Motor lift version Hei-VAP Advantage, Hei-VAP Precision
 The base unit is installed.
 Press the respective arrow key (up/down) (see Figure 4–5 (2) and release the push-
button at the desired position of the drive unit.
The drive unit remains in the proper position set by the operator.
4.5 Assemble glassware sets
Assembling the glassware sets will be described in the following. The rotary evaporators
can be equipped with various glassware sets.
 The base unit is set up and installed.
 A water or coolant connection is available (does not apply for glassware set G5).
 Lift is in the top position (see chapter 4.4.6).
Hand lift
Hand lift
Motor lift
Assemble glass-
ware sets
1
2
