Heidolph Hei-VAP Value - Setting the Evaporator Flask Inclination

Set-up and Start-up
Hei-VAP Value, Hei-VAP Advantage 27
EN
4.5.6 Setting the evaporator flask inclination
The inclination of the evaporator flask can be set by turning the drive unit.
CAUTION
Unintentionally rotating drive!
Injuries to hands.
 Verify that the rotation is displayed.
WARNING
Risk of injuries due to retracting or entrapment!
Risk of injury.
A risk of entanglement exists on the movable parts of the unit.
 Wear suitable protective clothing for activities on the rotary
evaporator with goggles and gloves.
WARNING
Glass breakage!
Serious injuries from shattering and breaking glass.
 Check glass devices for damages (stars, breaks, etc.).
 Only use perfect glass devices and replace all damaged
glassware as soon as possible.
 Work carefully.

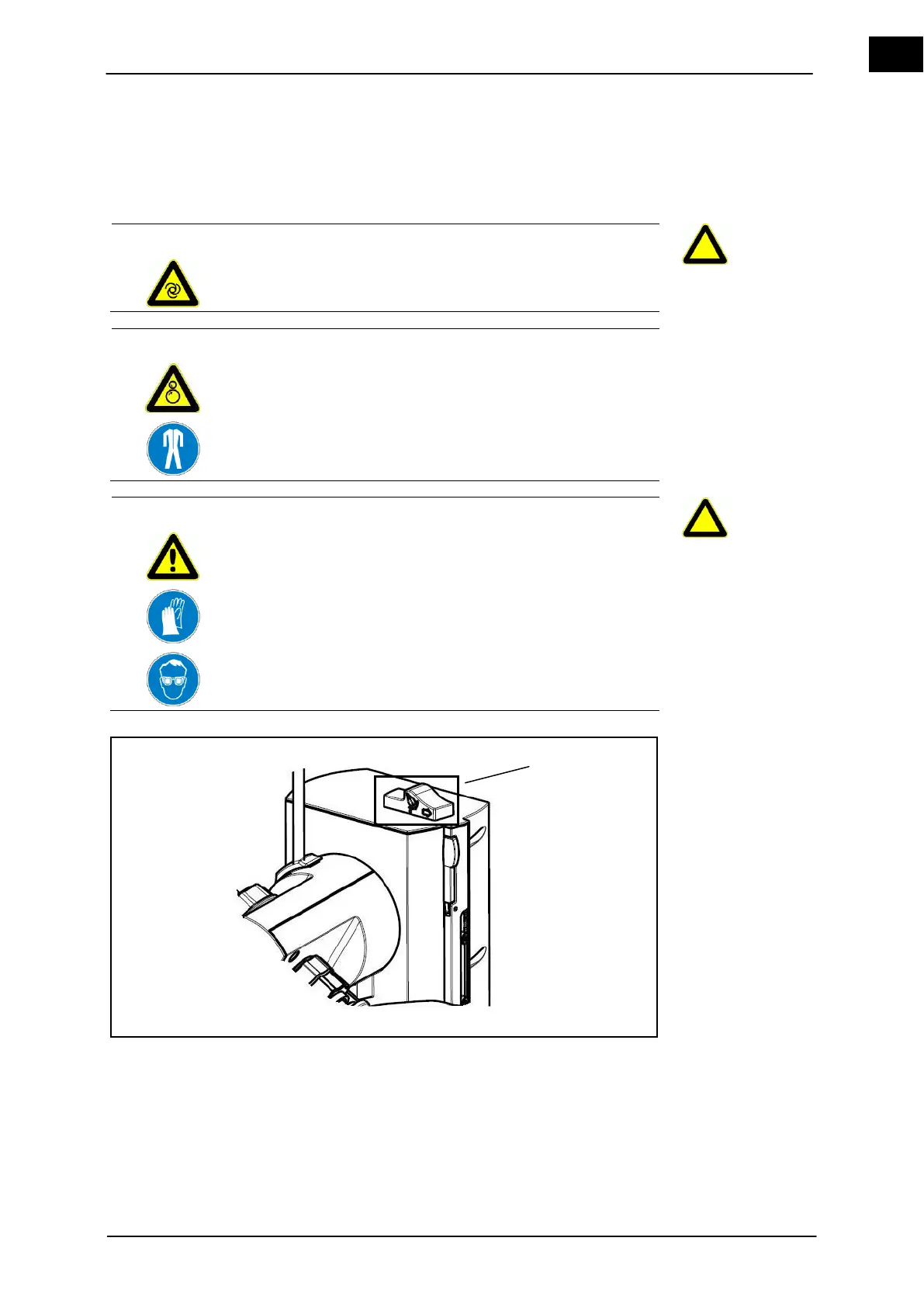

Figure 4–14: Evaporator flask inclination / immersion depth
1. Grasp the condenser with the left hand.
2. Unlock the locking device (1) at the lift column toward the right by applying pressure
with your right hand.
3. Set the evaporator flask inclination by carefully swinging the condenser.
4. Position the locking device by releasing and snapping it in.
Setting the evapo-
rator flask inclina-
tion
Evaporator flask
inclination and
immersion depth
1
