Heidolph Hei-VAP Value - Assemble; Connect Accessories

Set-up and Start-up
38 Hei-VAP Value, Hei-VAP Advantage
EN
EN
4.8 Assemble / connect accessories

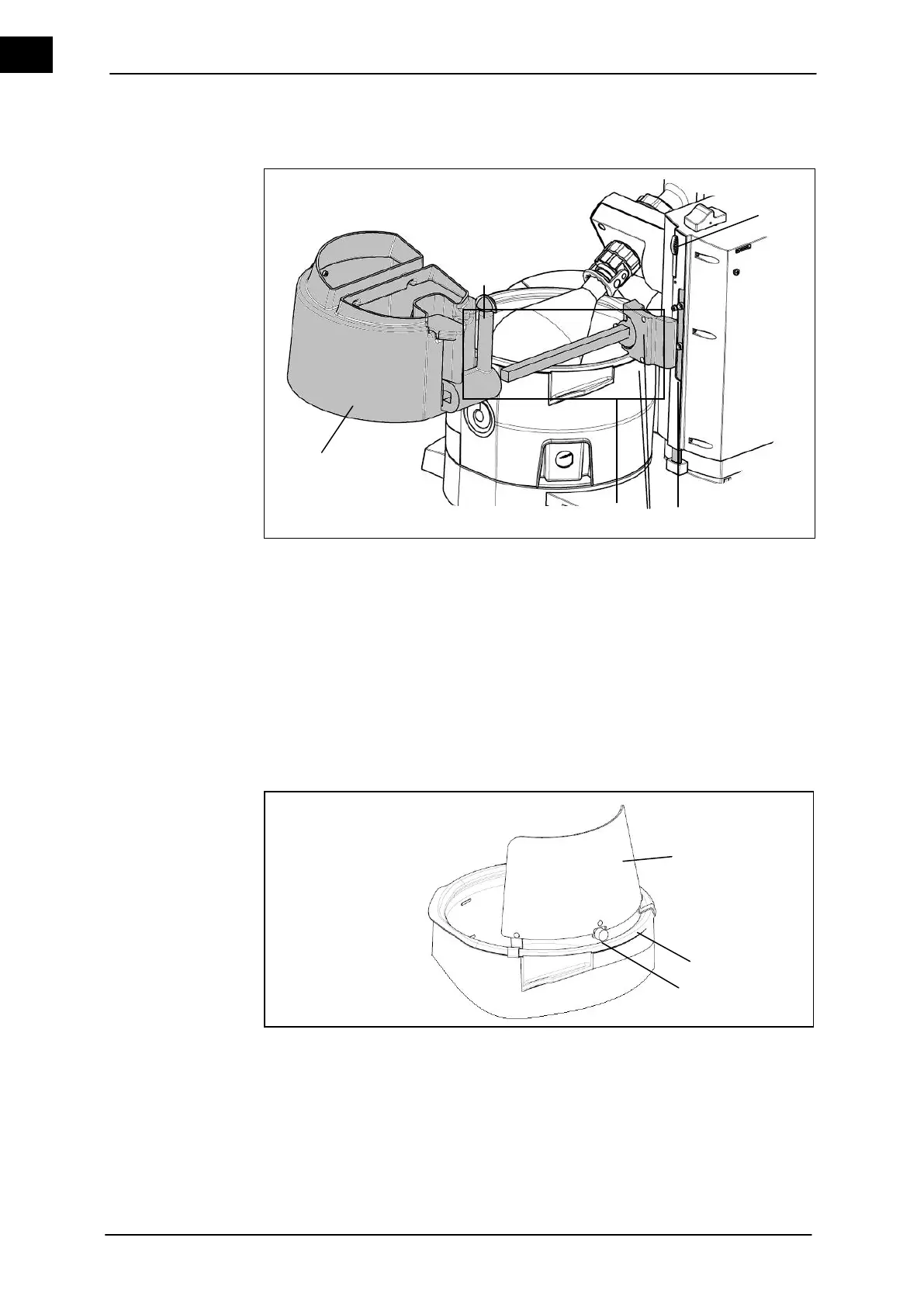

Figure 4–27: Assemble the protective cover
1
Height stop
4
Lock screw
2
Allen screws
5
Protective hood
3
Support cover
6
Height stop lock
1. Screw the support cover (3) to the height stop (1) by using the two enclosed Allen
screws (2).
2. Release the clamping screw (4) and align the cover (5) over the heating bath by
shifting horizontally.
3. Tighten the clamping screw.
The cover is assembled. The cover can be opened by the handle.
Figure4–28: Assemble the protective shield
1
Protective shield
3
Eccentric screw
2
Heating bath
1. Move the lift upward.
2. Attach the protective shield (1) on the edge of the heating bath (2) and position so
that the (possibly available) cover can be easily opened.
3. Turn the eccentric screw (3) by 180° and use it to attach the protective shield on the
heating bath.
Protective hood
Protective shield
1
2
3
5
4
3
2
1
6
