Heidolph Hei-VAP Value - Assemble the Collecting Flask; Connect the Cooling Medium (Except G5)

Set-up and Start-up
Hei-VAP Value, Hei-VAP Advantage 31
EN

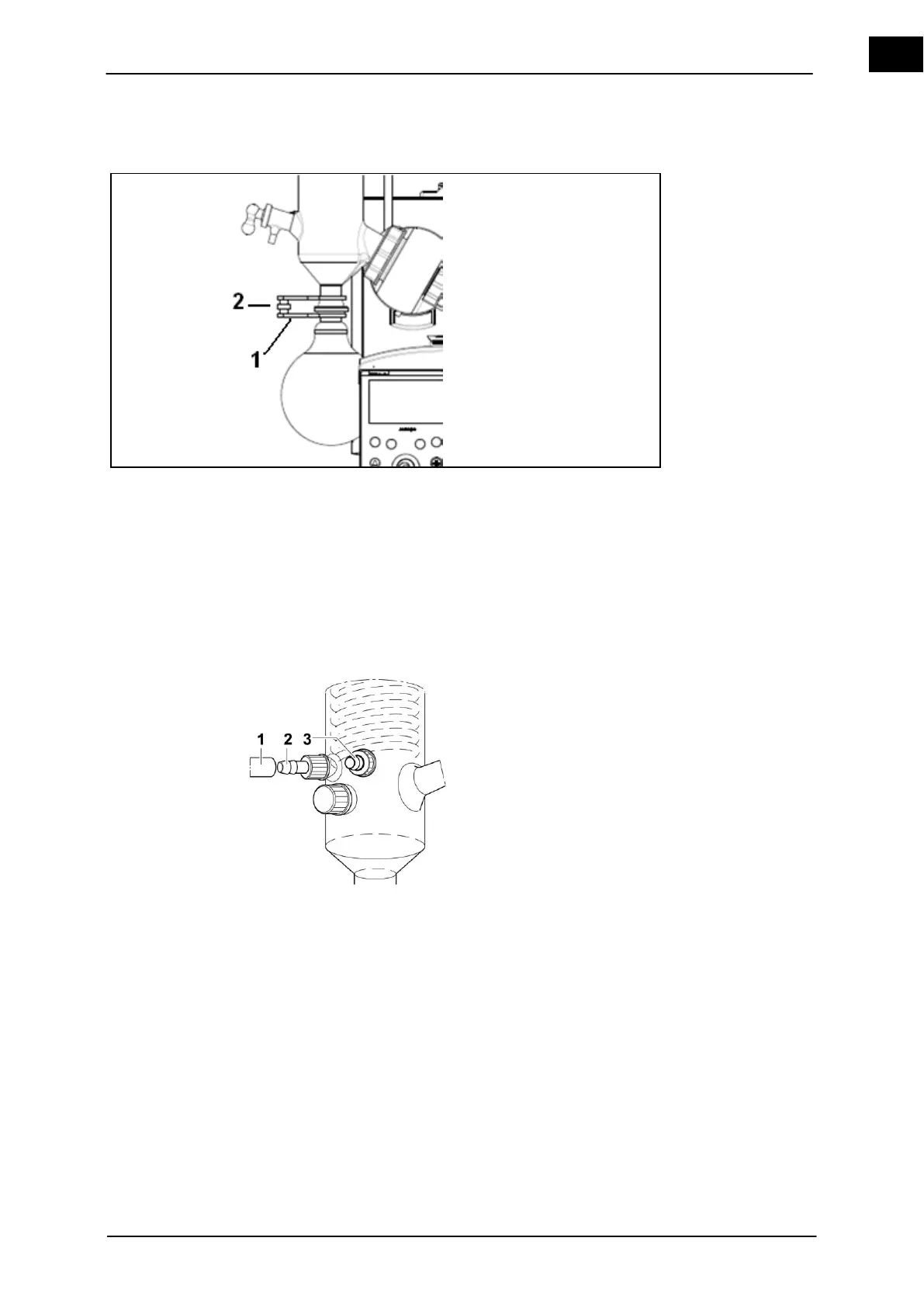

4.5.11 Assemble the collecting flask
1. Hold the receiving flask with the ball-socket clamp KS 35 (1) to the condenser.
2. Secure with a knurled head screw (2).
The socket joint of the receiving flask is attached to the ball joint of the condenser via
pinch clamp KS 35.
4.5.12 Connect the cooling medium (except G5)
 Use a suitable tube with an inner diameter of 7-8 mm (i.e. hose set (see accessories
11.2))
Figure 4–17: Connect the coolant
1
Tube (coolant inlet)
3
Return (GL hose barb)
2
Connectors (GL hose barb)
1. Push the tube (coolant supply) (1) onto the hose barb of the inlet connector. Pro-
ceed accordingly with the return hose barb (3) of the coolant.
2. Secure with hose clamps.
Feed and return of the coolant are connected by screwing caps onto glass threads.
Connect the cool-
ing medium
