11 Accessories, spare parts
11.1 Glass devices

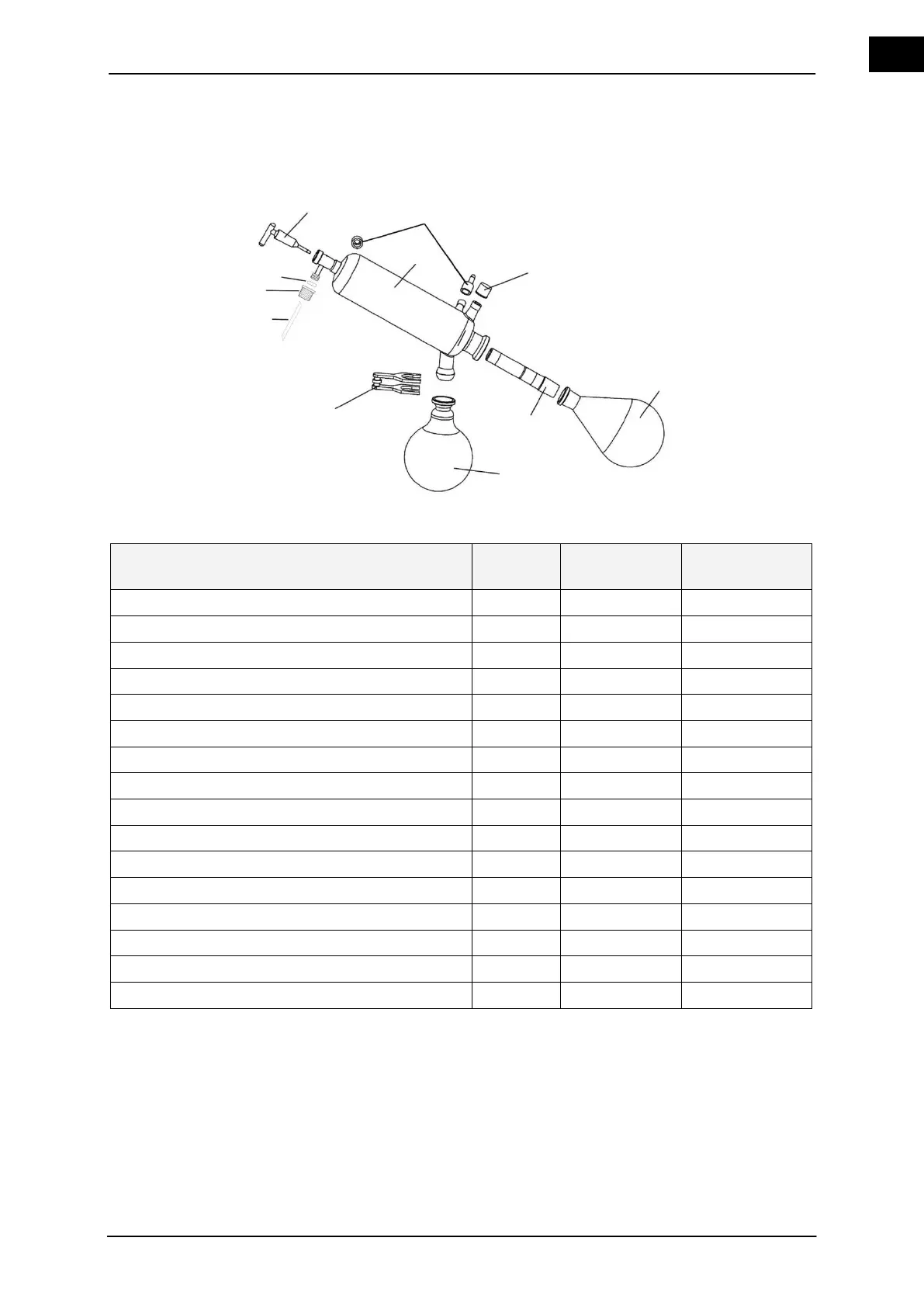

Figure 11–1: Glassware set G1
Order description
Position
Order No.
Piece at deli-
very
Threaded fitting GL 18
1
23-09-03-01-24
1
Evaporator flask 1,000 ml, NS 29/32
2
514-74000-00
1
Evaporator flask 1,000 ml, NS 24/40
2
514-74000-05
(1)
Vapor tube NS 29 / 32
3
514-00000-01
1
Vapor tube NS 24 / 40
3
514-00020-03
(1)
Receiving flask 1000 ml, S 35/20
4
514-84000-00
1
Receiving flask 1000 ml, S 35/20, plastic coated
4
514-84000-02
(1)
Condenser clamp S 35/20
5
515-42000-00
1
Inlet tube (PTFE-) 3.5/4.5x600
6
23-30-01-04-72
1
Threaded fitting GL10 red
7
23-30-01-04-69
1
Seal O-ring 3.2x2.5
8
23-08-06-03-26
1
Inlet pipe (stopcock)
9
514-51000-00
1
Threaded fitting GL 14
10
23-09-03-01-27
3
Connector for the threaded fitting GL 14
10
11-300-005-22
3
Condenser G1
11
514-00100-00
1
Condenser G1B, plastic coated
11
514-00110-00
(1)
Table 11-1: Glassware set G1
9
2
4
3
5
1
8
7
6
10
11
