Heidolph Hei-VAP Value - Page 72

Accessories, spare parts
64 Hei-VAP Value, Hei-VAP Advantage
EN
EN

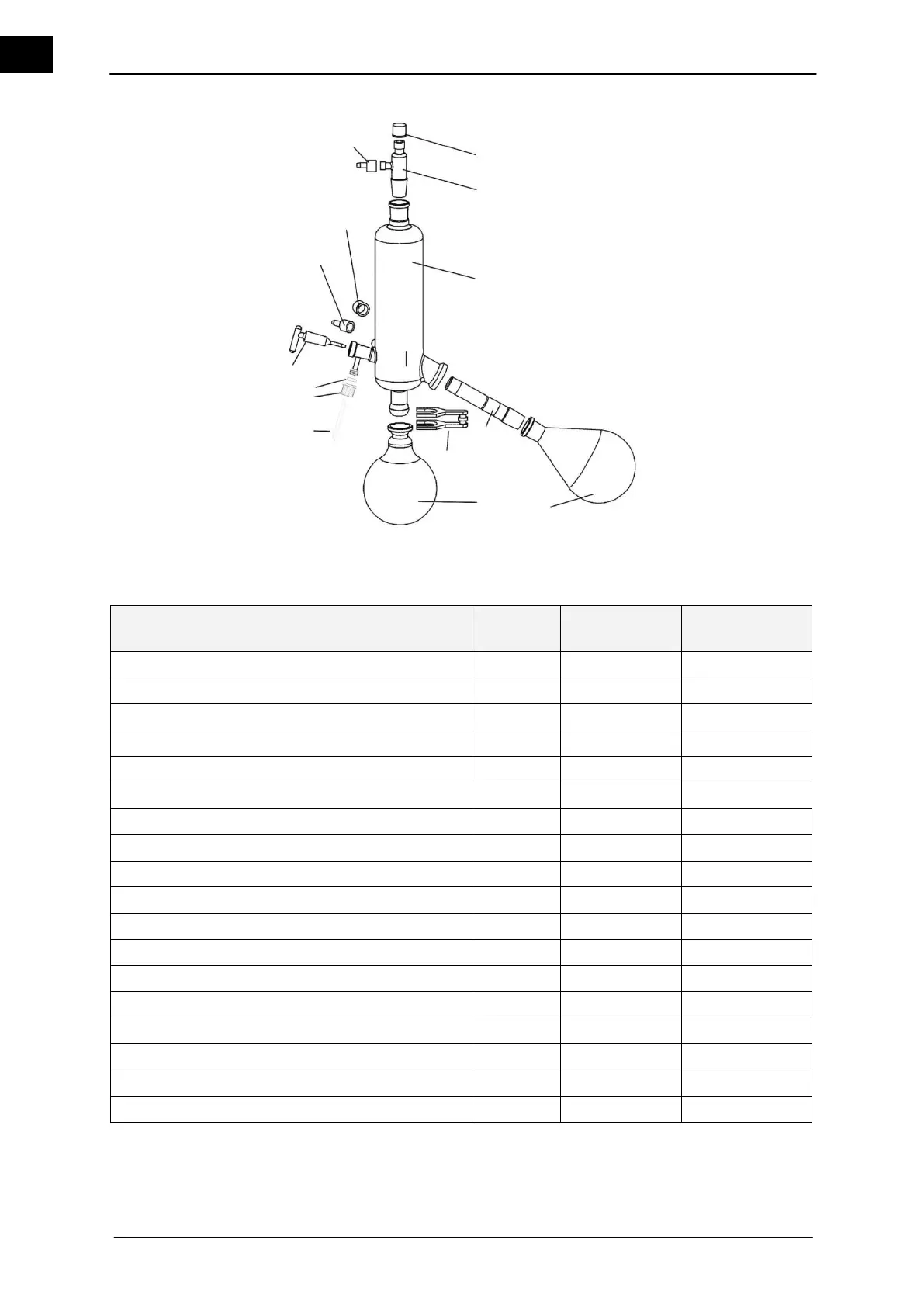

Figure 11–2: Glassware set G3
Order description
Position
Order No.
Piece at deli-
very
Threaded fitting GL 18
1
23-09-03-01-24
2
Vacuum fitting NS 29 / 32
2
514-00001-00
1
Condenser G3
3
514-00300-00
1
Condenser G3B, plastic coated
3
514-00310-00
(1)
Evaporator flask 1,000 ml, NS 29/32
4
514-74000-00
1
Evaporator flask 1,000 ml, NS 24/40
4
514-74000-05
(1)
Vapor tube NS 29 / 32
5
514-00000-01
1
Vapor tube NS 24 / 40
5
514-00020-03
(1)
Condenser clamp S 35/20
6
515-42000-00
1
Receiving flask 1000 ml, S 35/20
7
514-84000-00
1
Receiving flask 1000 ml, S 35/20, plastic coated
7
514-84000-02
(1)
Inlet tube (PTFE-) 3.5/4.5x600
8
23-30-01-04-72
1
Threaded fitting GL10 red
9
23-30-01-04-69
1
Seal O-ring 3.2x2.5
10
23-08-06-03-26
1
Inlet pipe (stopcock)
11
514-51000-00
1
Threaded fitting GL 14
12
23-09-03-01-27
3
Connector for the threaded fitting GL 14
13
11-300-005-22
3
Condenser mounting
569-00050-00
1
Table 11-2: Glassware set G3
1
2
3
4
5
7
6
8
9
10
11
12/13
1
12/13
