Set-up and Start-up
20 Hei-VAP Value, Hei-VAP Advantage
EN
EN
WARNING
Glass breakage!
Serious injuries from shattering and breaking glass.
Check glass devices for damages (stars, breaks, etc.).
Only use perfect glass devices and replace all damaged
glassware as soon as possible.
Work carefully.
CAUTION
Unintentionally rotating drive!
Injuries to hands.
Verify that the rotation is displayed.
4.5.1 Install the condenser mounting (G3-G6)
In order to protect the glassware sets with vertical condensers from accidentally tilting,
they are supported by a condenser mounting and support rod.

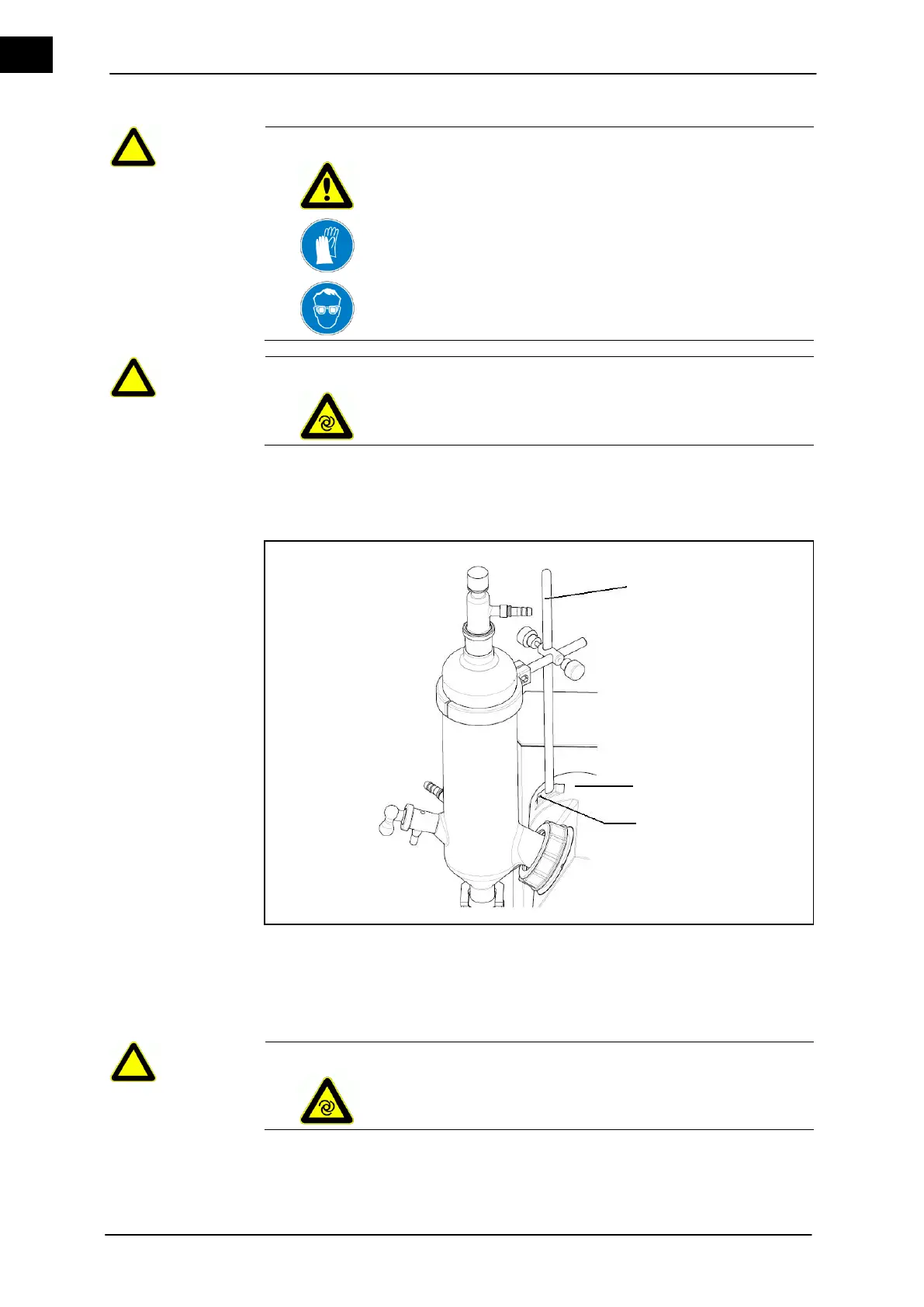

Figure 46: Install the condenser mounting
1
Support rod
2
Drive unit
3
Fastening screw - support rod
CAUTION
Unintentionally rotating drive!
Injuries to hands.
Verify that the rotation is displayed.
Install the con-
denser mounting
3
1
2
