Heidolph Hei-VAP Value - Page 43

Set-up and Start-up
Hei-VAP Value, Hei-VAP Advantage 35
EN

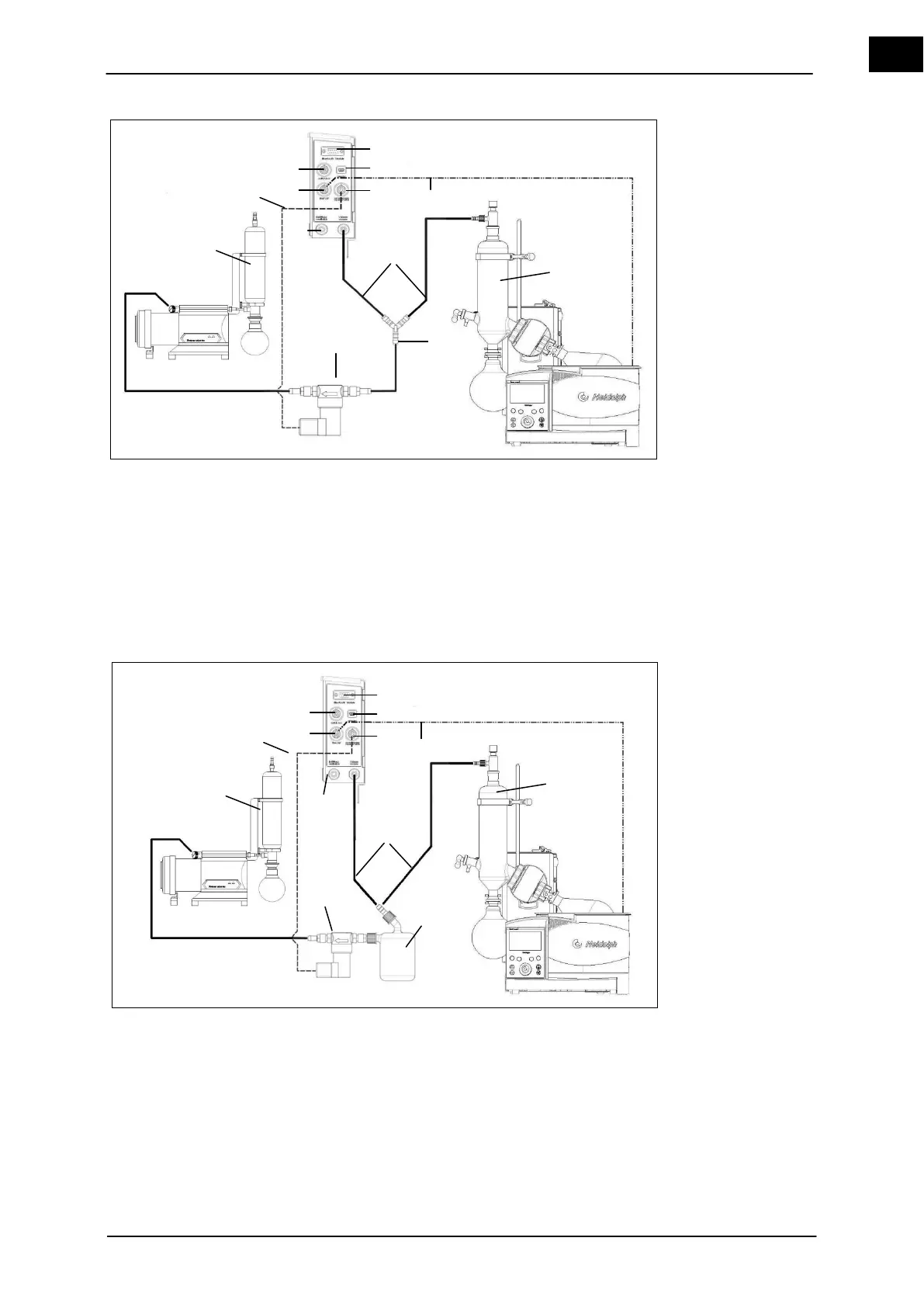

Figure 4–22: Hei-VAP Precision with Rotavac valve control and vacuum box
1
Condenser
8
Ventilation / inert gas
2
Y-piece
9
Vacuum tube
3
Vacuum valve
10
Vacuum valve cable connection
4
Condensate cooler (optional)
11
USB PC connection
5
Vacuum valve cable
12
Bluetooth module
6
Switch box connection
13
Data cable
7
Hei-VAP connection
Figure 4–23: Hei-VAP Precision with Rotavac valve control and vacuum box and with
Woulff bottle
1
Condenser
8
Ventilation / inert gas
2
Woulff bottle
9
Vacuum tube
3
Vacuum valve
10
Vacuum valve cable connection
4
Condensate cooler (optional)
11
USB PC connection
5
Vacuum valve cable
12
Bluetooth module
6
Switch box connection
13
Data cable
7
Hei-VAP connection
4
2
3
6
7
8
11
12
9
Rotavac
* valve control
* valve tec
13
Vacuum box
1
10
5
4
2
3
6
7
8
11
12
9
Rotavac
* valve control
* valve tec
13
Vacuum box
1
10
5
