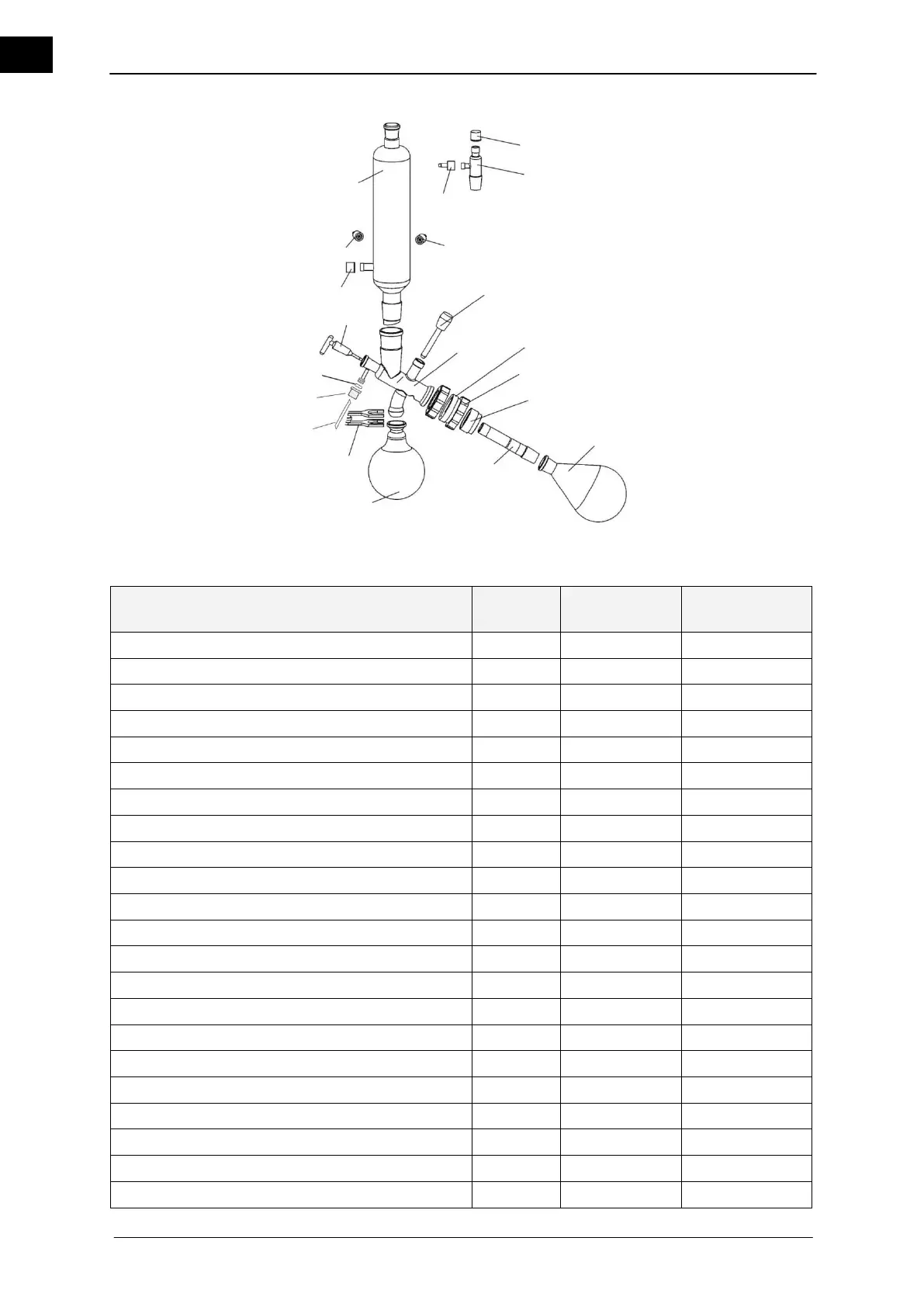

Figure 11–4: Glassware set G6
Order description
Position
Order No.
Piece at deli-
very
Threaded fitting GL 18
1
23-09-03-01-24
2
Vacuum fitting NS 29 / 32
2
514-00001-00
1
Threaded fitting GL 14
3
23-09-03-01-27
3
Connector for the threaded fitting GL 14
3
11-300-005-22
3
Valve
4
514-48000-00
1
Center piece G6
5
514-00601-00
1
Center piece G6B, plastic coated
5
514-00611-00
(1)
G6 threaded coupling
6
515-62000-00
1
Gasket G6
7
23-30-01-01-35
1
Intermediate part G6
8
22-30-01-05-02
1
Evaporator flask 1,000 ml, NS 29/32
9
514-74000-00
1
Evaporator flask 1,000 ml, NS 24/40
9
514-74000-05
(1)
Vapor tube NS 29 / 32 G6
10
514-00000-05
1
Vapor tube NS 24 / 40 G6
10
514-00020-06
(1)
Receiving flask 1000 ml, S 35/20
11
514-84000-00
1
Receiving flask 1000 ml, S 35/20, plastic coated
11
514-84000-02
(1)
Condenser clamp S 35/20
12
515-42000-00
1
Inlet tube (PTFE-) 3.5/4.5x600
13
23-30-01-04-72
1
Threaded fitting GL10 red
14
23-30-01-04-69
1
Seal O-ring 3.2x2.5
15
23-08-06-03-26
1
Inlet pipe (stopcock)
16
514-51000-00
1
Condenser G6
17
514-23000-00
1
1
2
3
3
3
1
4
5
6
7
8
9
10
11
12
13
14
15
16
17
