Heinzmann KRONOS 20 User Manual

3 Sensors
12 KRONOS 20
m
i
n
d
.
4
mm
mind. 2.5mm
mind. 4mm
0.5-0.8mm

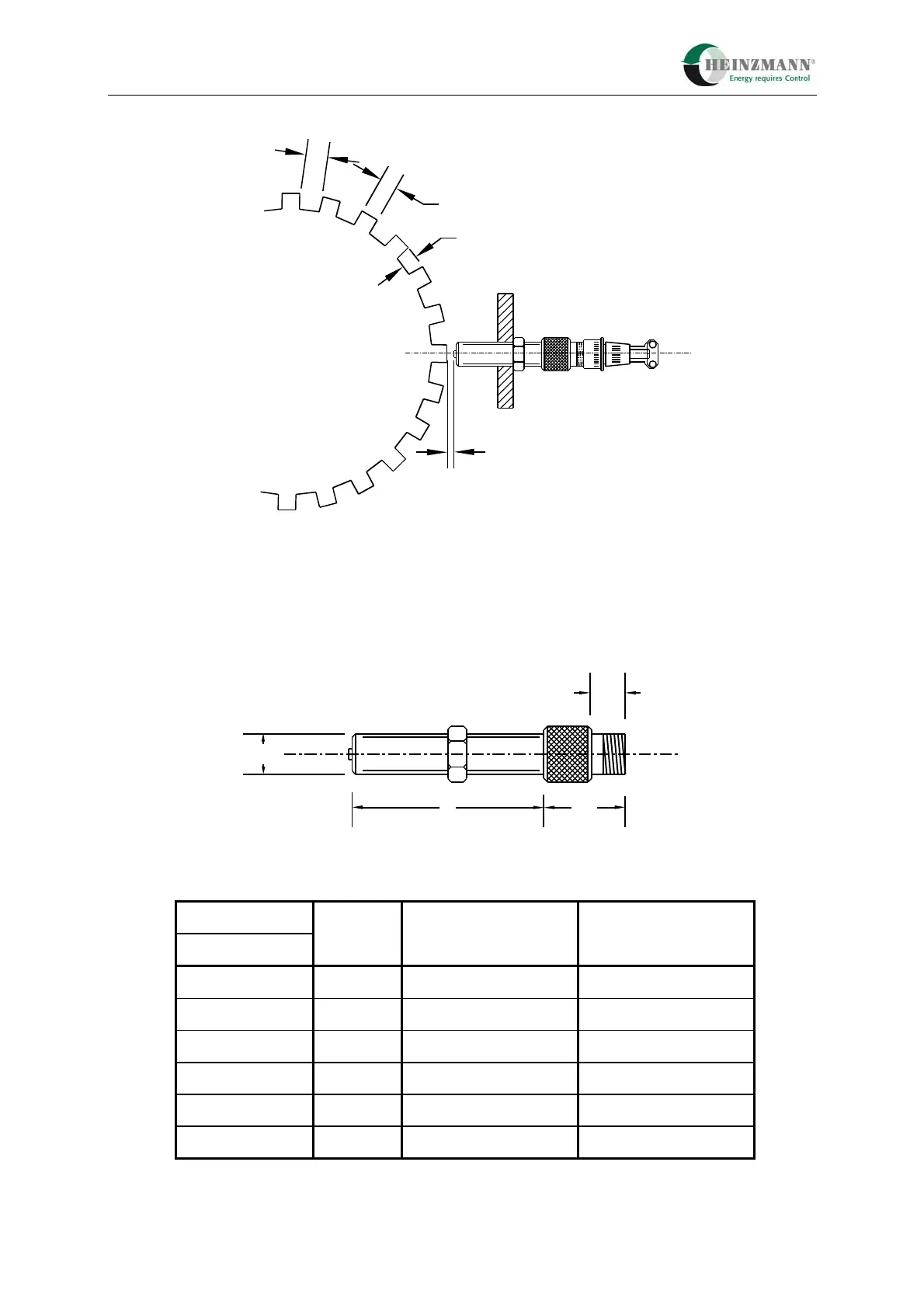

Figure 2: Distance of the Speed Pickup
3.2.5 Dimensional Drawing
G
L
35
19
Figure 3: Dimensions of the Speed Pickup
Unit
Type
L(mm) G Notes
01 - 38 38 M 16 x 1.5
02 - 76 76 M 16 x 1.5 connector
03 - 102 102 M 16 x 1.5 used
11 - 38 38 5/8"-18UNF-2A SV6-IA-2K
12 - 76 76 5/8"-18UNF-2A (010-02-170-00)
13 - 102 102 5/8"-18UNF-2A
The according name for ordering is e.g., IA 02-76.
