14 KRONOS 20
Temperature Sensor
Type NTC
Temperature measuring range -40°C to +130°C
Resistance at 20 °C (R20) 2.5 kOhm
±5 %
Max. measuring current 1 mA (5 V with 1 kOhm series resistor)
Temperature time constant t
63
approx. 10 seconds (air; v = 6 m/s)
3.3.2 Dimensional Drawing
600-00-082-00
HEINZMANN
2134
27,8
19,6
46,5
9
12,05
+/-0,08
60
14
12
48
6,7
20
9..12
22 15

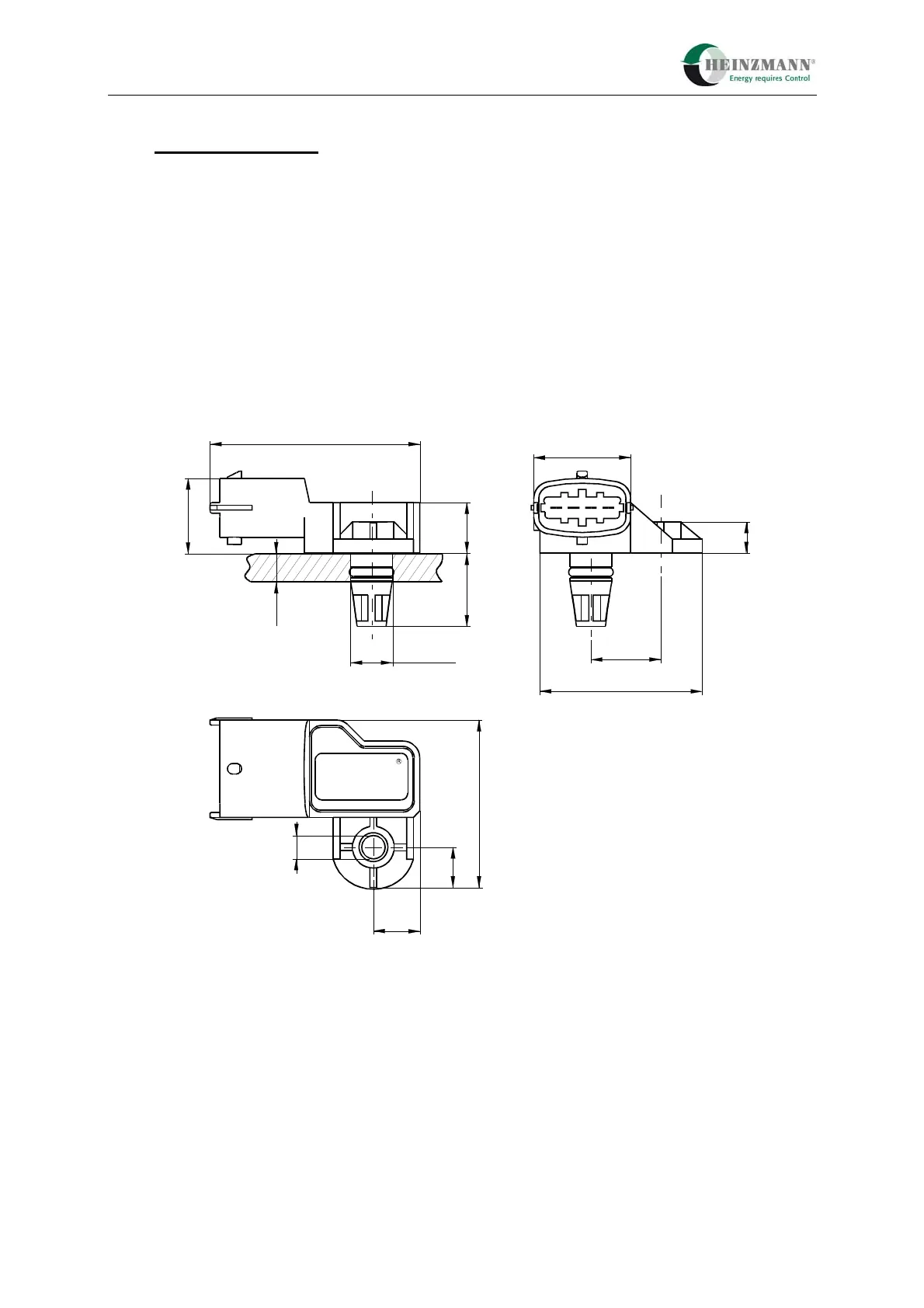

Figure 5: Dimensional Drawing of Double Sensor P/T-S-01
Sensor hole diameter 12.5
±0.1
mm
Mounting screw thread M6
3.3.3 Mounting
The sensor is designed for mounting on an even surface of the intake manifold. The
pressure joint and the temperature sensor reach into the manifold together and are sealed
against atmosphere with an O-ring.
