HELIX DSP PRO MK2 User Manual

25
HELIX Extension Card slot (HEC slot)
It is possible to extend the functionality of the HELIX
DSP PRO MK2 by inserting an optional HELIX
Extension Card (HEC) - for example a Bluetooth
®
Audio Streaming module, an additional optical digi-
tal input, an AUX input or an USB audio input.
To install a HELIX Extension Card it is necessary to
remove the side panel of the DSP PRO MK2 and
replace it by the new side panel that comes with the
HEC module.
Attention: Install the HEC module only in the
GHVLJQDWHG GHYLFH DQG LWV VSHFL¿F VORW 8VLQJ
the HEC module in other devices or slots can
result in damage of the HEC module, the signal
processor, the head unit / car radio or other con-
nected devices!
Read in the following the steps how to install a HEC
module:
1. First disconnect all cables from the device.
2. Dismantle the side panel where the USB input
LVORFDWHGE\UHPRYLQJWKH¿YH3KLOOLSVVFUHZV
3. Pull out the bottom plate sideways.
4. Prepare the module for installing it into the de-
vice. Any further mounting information will be
found in the instruction manual of the respective
HEC module.

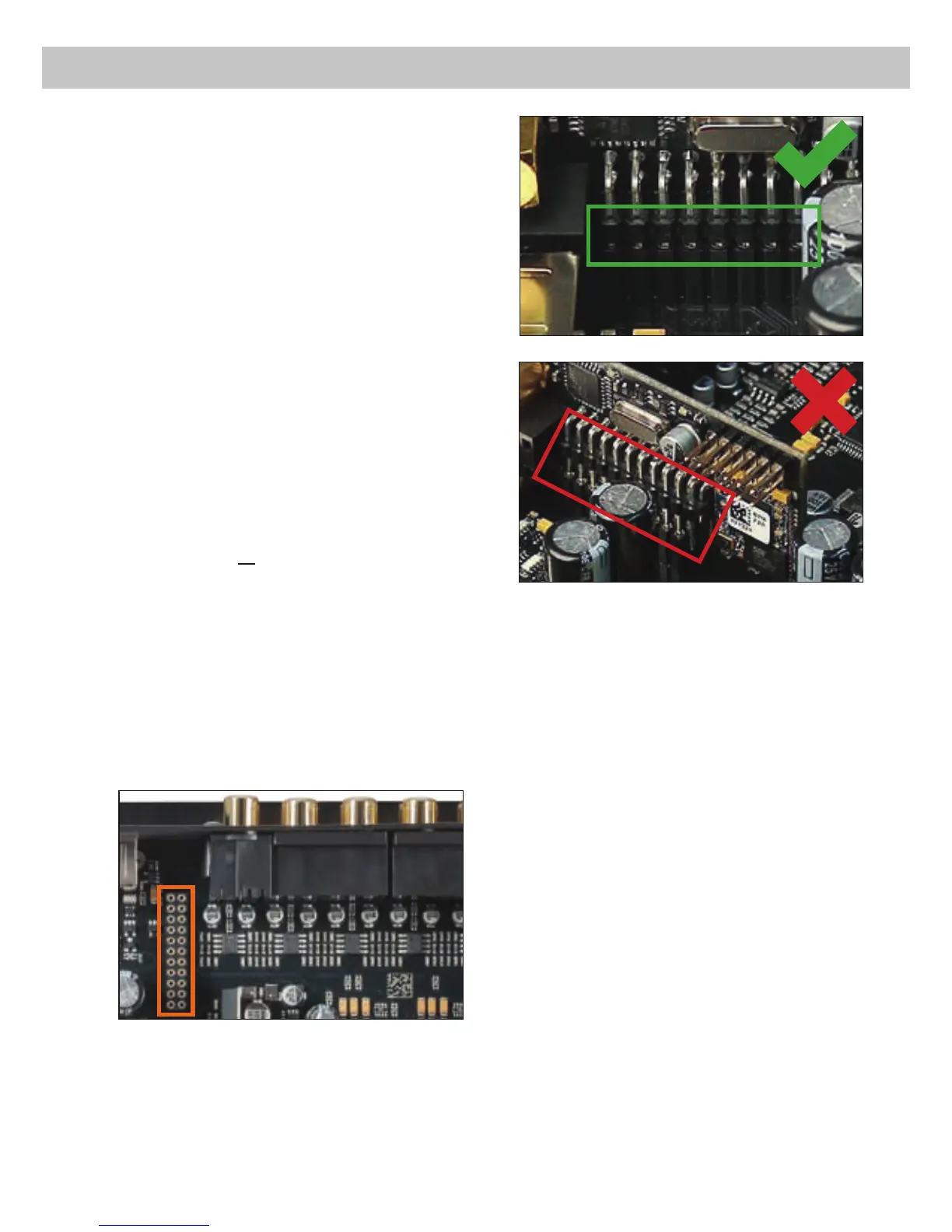

5. ,QVHUW WKH +(& PRGXOH LQWR WKH VSHFL¿F VORW
of the device which is marked in the following
picture.
6. Make sure that the HEC module is installed
properly and all pins are fully inserted into the
socket.
7. 5HLQVHUWWKHERWWRPSODWHDQG¿[WKHQHZVLGH
panel which is delivered with the HEC module
ZLWKWKH¿YH3KLOOLSVVFUHZV
8. Bolt the HEC module to the side panel. Precise
mounting information will be found in the in-
struction manual of the respective HEC module.
9. Reconnect all cables to the device.
10. Turn on the signal processor. The HEC module
is automatically detected by the device and the
Status LED of the HEC module lights up green.
11. 1RZ\RXDUHDEOHWRFRQ¿JXUHWKH+(&PRGXOH
in the DSP PC-Tool software.
