HELIX DSP PRO MK2 User Manual

Channel A
Channel B
Channel C
Channel D
Channel E
Channel F
Channel G
Channel H

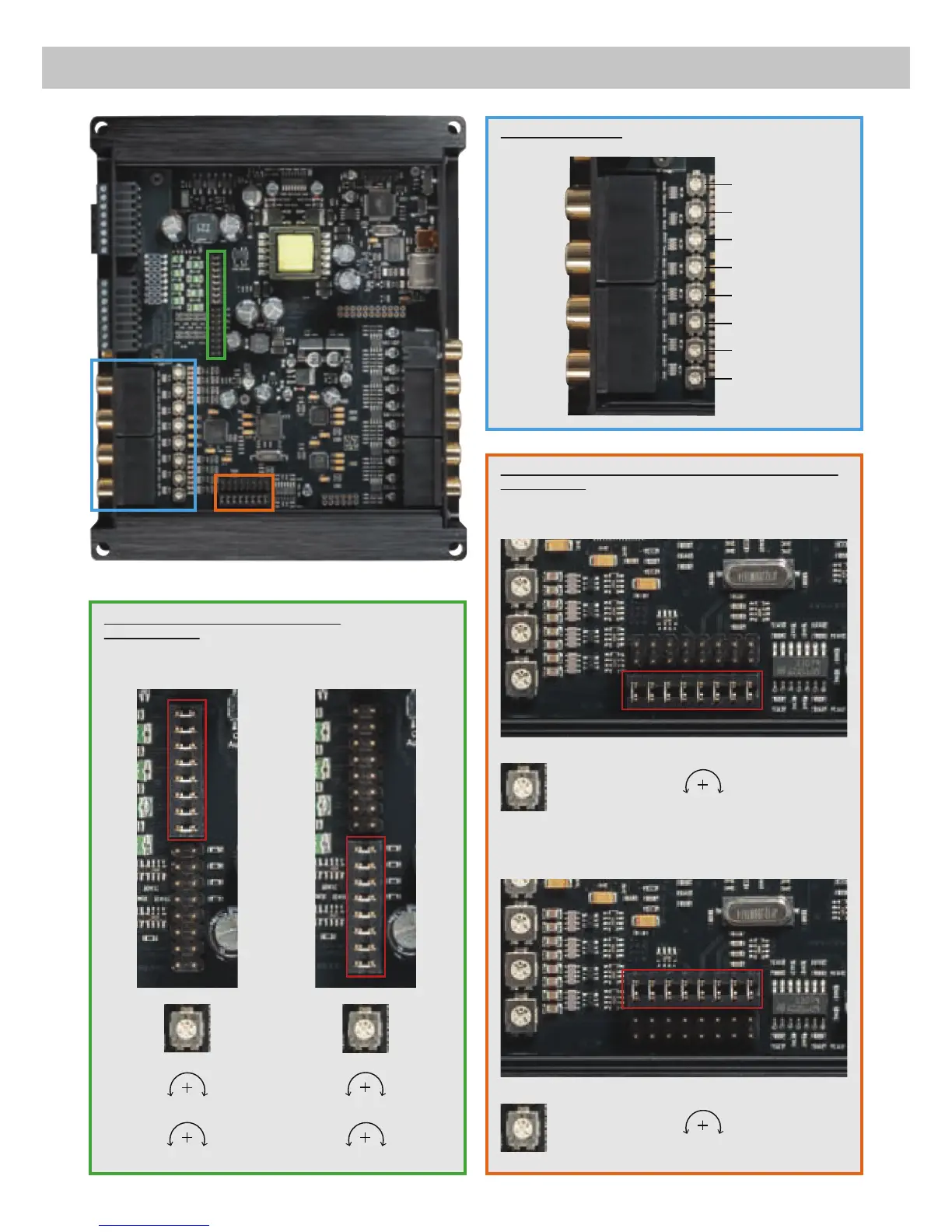

Channel assignment:
Adjustment of the input sensitivity of the
highlevel inputs:
Jumper upper position* Jumper lower position
2 V 4 V*
5 V 10 V*
RCA / Cinch
2 V 4 V
Highlevel
10 V 20 V
Adjustment of the input sensitivity for using channel G & H
as AUX inputs:
Jumper lower position*
Channel G & H:
2 V 4 V*
Jumper upper position
Channel G & H:
250 mV 500 mV
19
Installation
* Ex factory adjustment of HELIX DSP PRO MK2
Fig. 1
Fig. 3Fig. 2
