NETLink
®
PRO family Application Examples

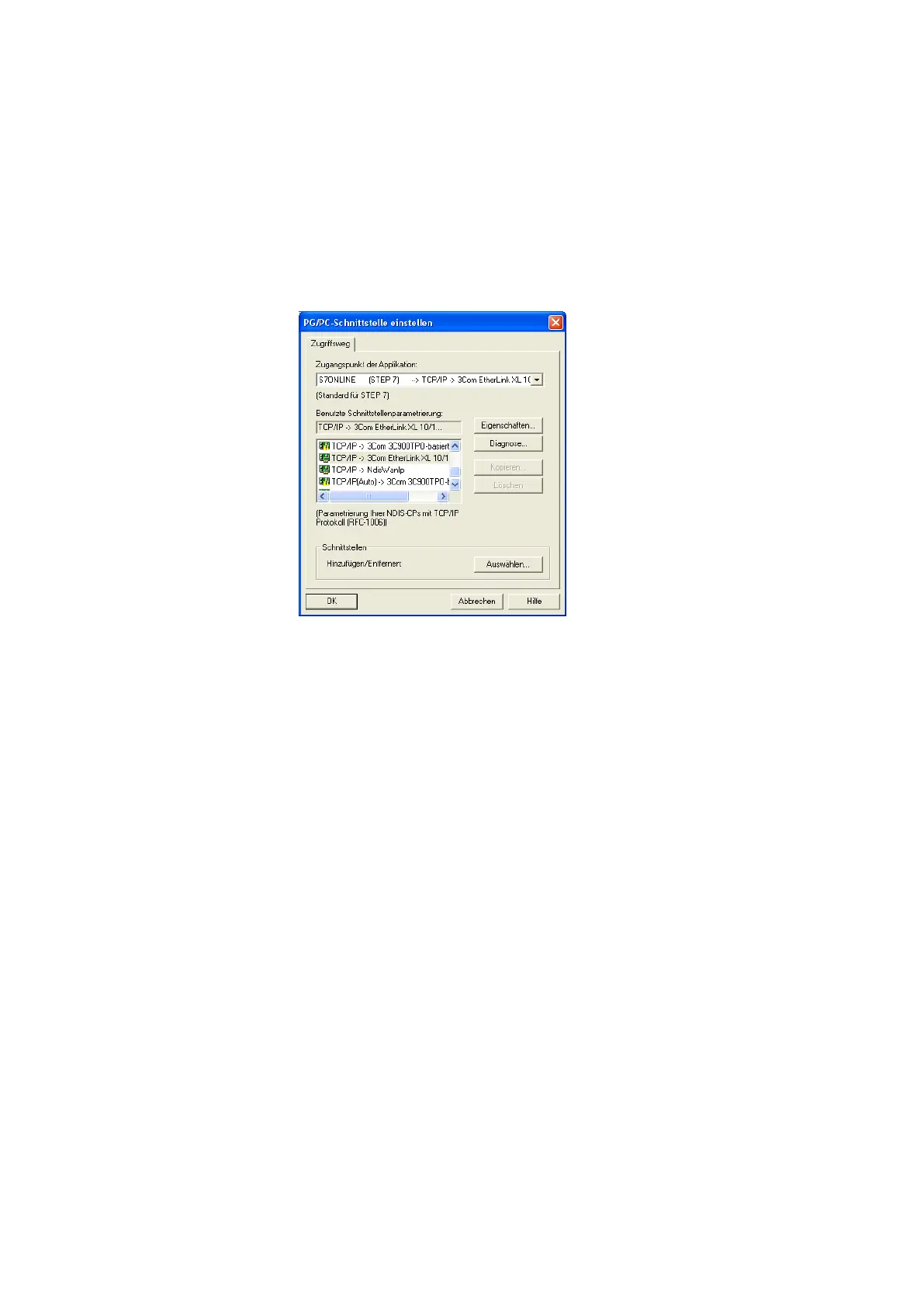

11.2 Configuring the PG/PC interface
In the control panel, open the “Setting the PG/PC Interface” mod-
ule.
• Select the network card with protocol “TCP/IP” installed in the
computer system as the “Used Interface Parameterization”.
• Check whether “S7ONLINE (Step7) --> TCP/IP ->…“ is active for
“Access point of application”
• Confirm with “OK”.
All variables that are linked to “Controller_1” can now be accessed
via the RFC 1006 protocol.
