6-5. HIGH TEMPERATURE
LIMIT SYSTEM
July 2016
A high limit thermocouple is attached to each element and
senses oil temperature. If temperature exceeds 600°F (316°C),
a switch opens and shuts off heat to vat, and an E-10 error
code is displayed. After oil temperature cools to a safe operat-
ing temperature (15-20 min.), the high limit must be manually
reset.
High limit reset switches are located in the front edge of an
electricalpanelontheleftsideoftheunitbesidethelterpan.
Open the left door, depress the raised part of the rocker switch
for the affected well, and release switch. If high limit resets,
the oil starts heating. If high limit does not reset, perform fol-
lowing checkout procedure.
Checkout:
To avoid electrical shock or property damage, move
power switch to OFF and disconnect main circuit
breaker, or unplug cord at wall receptacle.
1. Openleftdoorandremovethelterpan.
2. Remove 1 screw and panel cover.
3. Locate the affected high limit control module and view the
LEDs.
4. AretheLEDsalternateashing?Ifyes,checkthewiring
between the high limit probe and the high limit control
module for continuity. If the LEDs are not alternate
 ashingproceedtostep7.
5. Did the wiring pass continuity check? If yes, proceed to
the next step. If no, repair/replace wiring.
6. Replace high limit probe (instructions on next page).
7. AretheLEDssimultaneouslyashing?Ifyes,checkthe
 otherhighlimitmodulesforashingLEDs.Ifno,proceed
to step 9.
8. DoesmorethanonehighlimitmodulehaveLEDsashing
simultaneously? If yes, the temperature in the left
compartment is too hot. Find the cause of the excessive

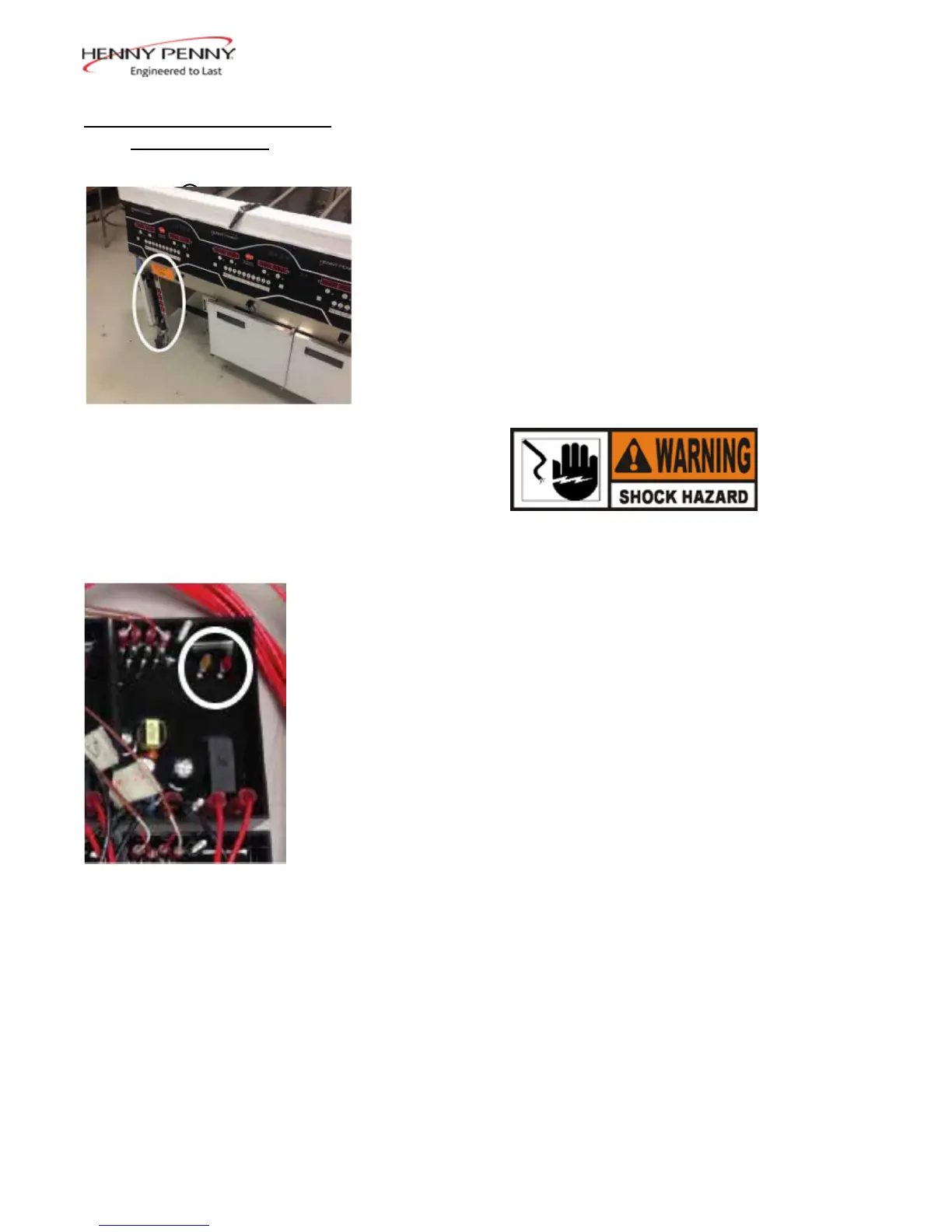

High Limit Module LED locations
High Limit Reset Switch Locations
