Henny Penny EVOLUTION ELITE EEE-182 - Page 46

Model EEE-182
6-4
6-5. HIGH TEMPERATURE
LIMIT SYSTEM
(Continued)
July 2016
 heatandxtheproblem.Ifno,replacethehighlimit
control module (instructions below).
9. Check the wiring between the high limit control module
and the high limit reset switch for continuity. If the wiring
passed the continuity check replace the high limit reset
switch (instructions below). If the wiring failed the
continuity check repair/replace wiring.
High Limit Module Replacement
1. Remove all electrical power from the fryer.
2. Tag and remove lead wires to control module.
3. Using 3/8“ socket, remove 2 nuts securing module to
panel.
4. Install a new control module in reverse order.
High Limit Reset Switch Replacement
1. Remove all electrical power from the fryer
2. Openleftdoorandremovethelterpan.
3. Remove 1 screw and panel cover.
4. Push in on spring tabs and pull the switch away from the
mounting area.
5. Tag and remove the switch wires from the high limit
module.
6. Tag and remove the wires from the high limit reset switch.
7. Install a new high limit reset switch in reverse order.

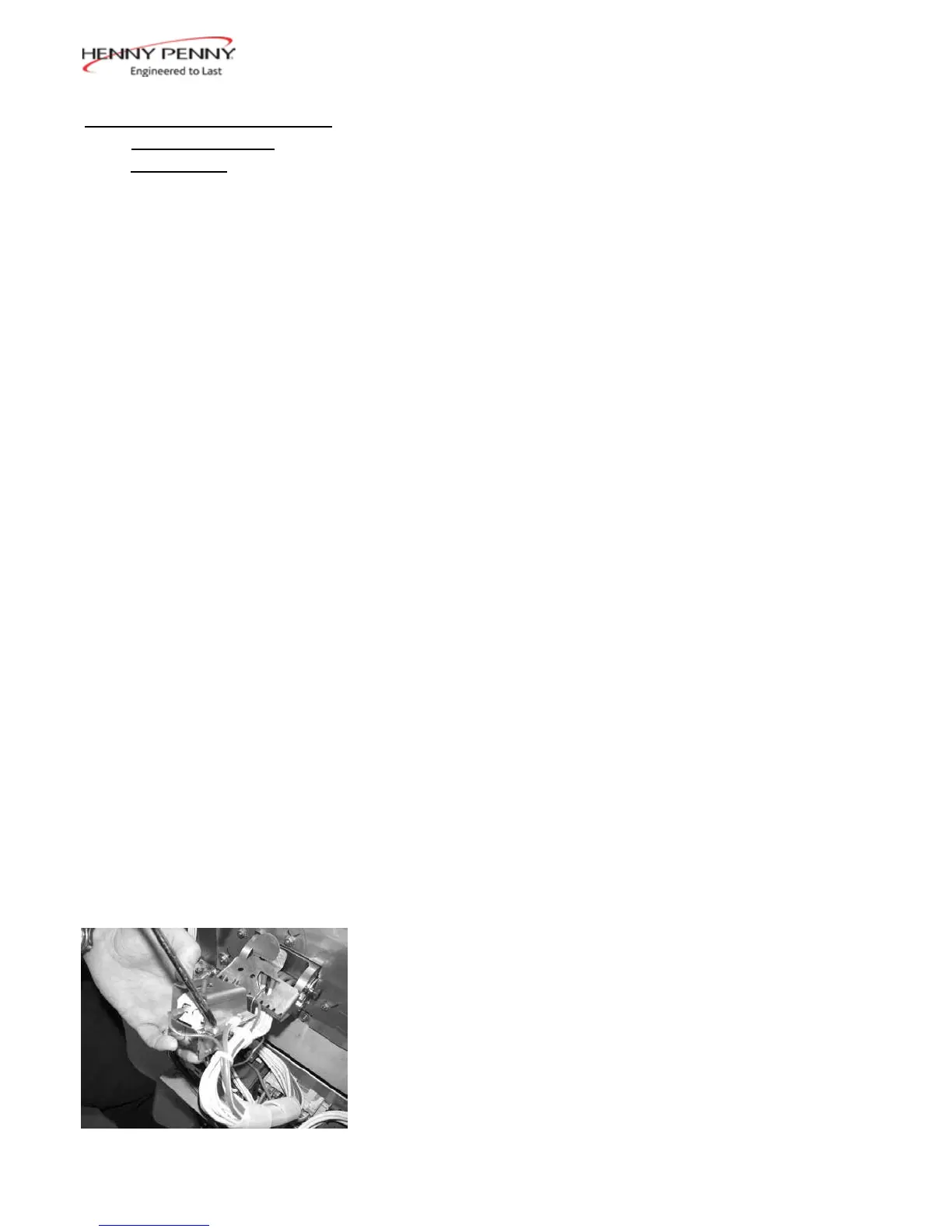

High Limit Probe Replacement
If the tube is broken or cracked, the control opens, shutting off
electrical power. The control cannot be reset.
1. Using a Phillip’s-head screwdriver, or screw gun, remove
the rear panel (9 screws).
2. Using 3/8” wrench or socket, remove the 2 acorn nuts
securing bracket to unit.
