Maxima XTEND AX ‑ 5
Fuses
1. Turn o power to maintenance machine and unplug unit from wall.
2. Insert small athead screwdriver into divot on side of fuse holder to press tab
inward and lift out fuse holder (Fig 10).
3. Pull out fuse(s).
4. Install new fuse(s) (250 V / 2 A slow blow) into holder.
5. Place fuse holder back into unit.

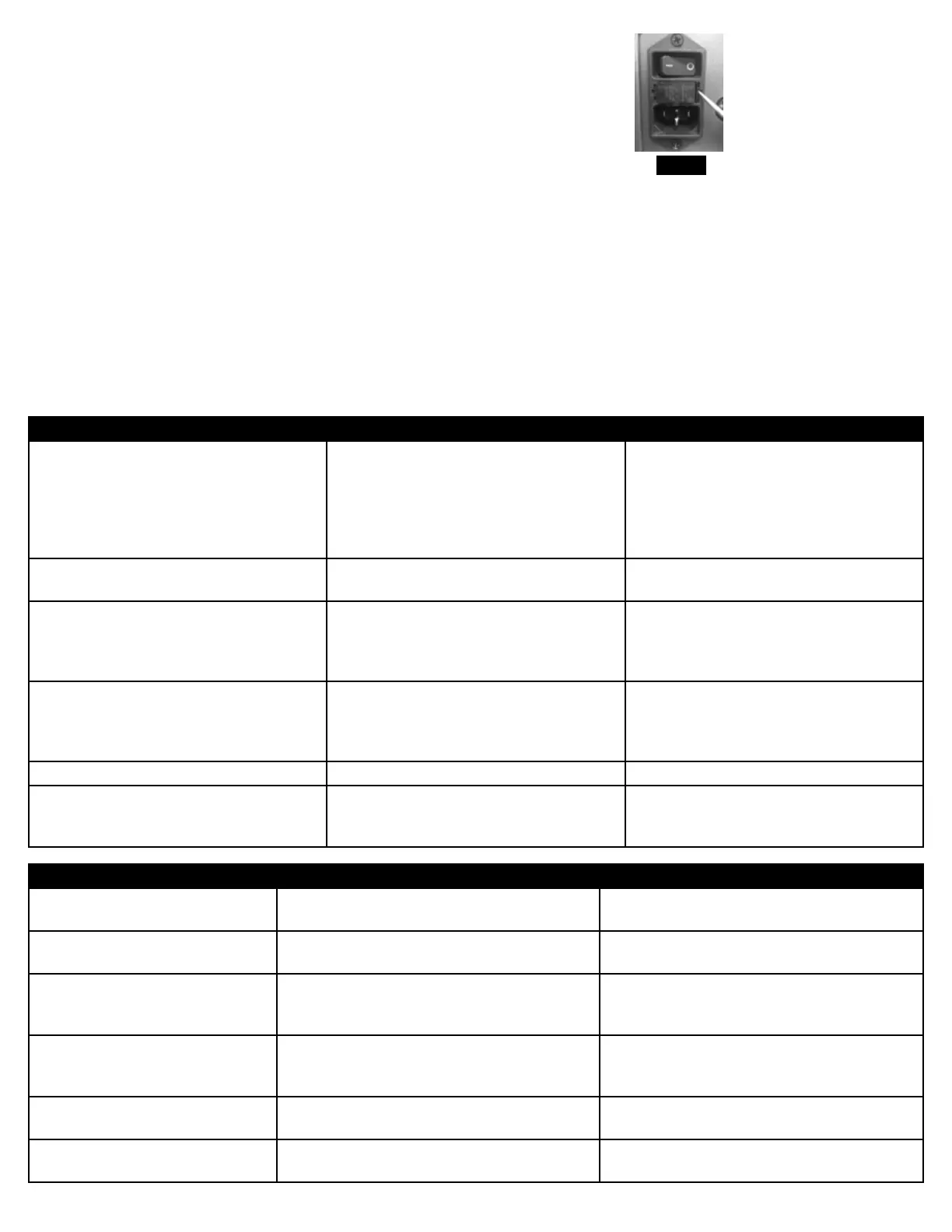

FIG. 10
ACCESSORIES
570‑0073 Maxima XTEND Spray 570‑0081 10‑pack Oil Tray Liners 570‑0082 Window Covers
Service Adapters
570‑0078 MULTIex 570‑0079 Midwest High‑speed 570‑0080 Midwest Low‑speed
570‑0083 A‑dec / W&H 570‑0084 Star 570‑0085 NSK Swivel
570‑1071 MaxPro 570‑0086 E‑type
TROUBLESHOOTING
Note: The Maxima XTEND AX Maintenance System will beep continuously any time there is an operation error. Before attempting any
troubleshooting solutions, power o machine.
PROBLEM CAUSE SOLUTION
Unit will not operate; lights and LCD display
not on.
Unit not powered on. Check unit power cord connections at
outlet and back of unit.
Make sure power outlet is live.
Inspect and change fuse(s).
Unit will not operate when Start button
pressed; LCD display shows “DOOR.”
Front door open. Close front door.
Unit will not operate when Start button
pressed; LCD display shows “CHECK CAN”
and Empty Spray Can light is blinking.
Maxima XTEND Spray can empty.
Maxima XTEND Spray can not properly
installed.
Replace Maxima XTEND Spray can.
Reinstall Maxima XTEND Spray can.
Unit will not operate when Start button
pressed; LCD display shows “Low air
pressure. Code 04.”
Compressed air is not connected.
Air pressure set below 4 bars.
Properly connect compressed air.
Enter OPERATIONAL SETUP for air pressure
and use air regulator to adjust to 4 ‑ 6 bars.
Unusual odor Oil tray liners saturated. Replace oil tray liners and clean oil tray.
Spray can will not install. Spray nozzle is bent.
Not using Maxima XTEND Spray.
Replace spray can.
Use only Maxima XTEND Spray.
ERROR CODE & TYPE DESCRIPTION SOLUTION
Error 01
Keyboard Error
Control panel malfunction Contact Henry Schein ProRepair
Error 02
Oil supply motor error
Oil inlet valve malfunction Contact Henry Schein ProRepair
Error 04
Pressure input too low
Air pressure too low Check that air supply pressure is set to at least
4 bars as explained in the OPERATIONAL SETUP
section
Error 05
Pressure input too high
Air pressure too high Check that air supply pressure is set to less than
6 bars as explained in the OPERATIONAL SETUP
section
Error 06
Function memory access error
Electromagnetic switch malfunction Contact Henry Schein ProRepair
Error 07
Oil empty
Maxima XTEND Spray can empty Replace spray can
