HER CHEE ATV-50 - Left Crank Case Cover Disassembly

8-2
Starter / Driving Disc / Clutch / Transmission Disc

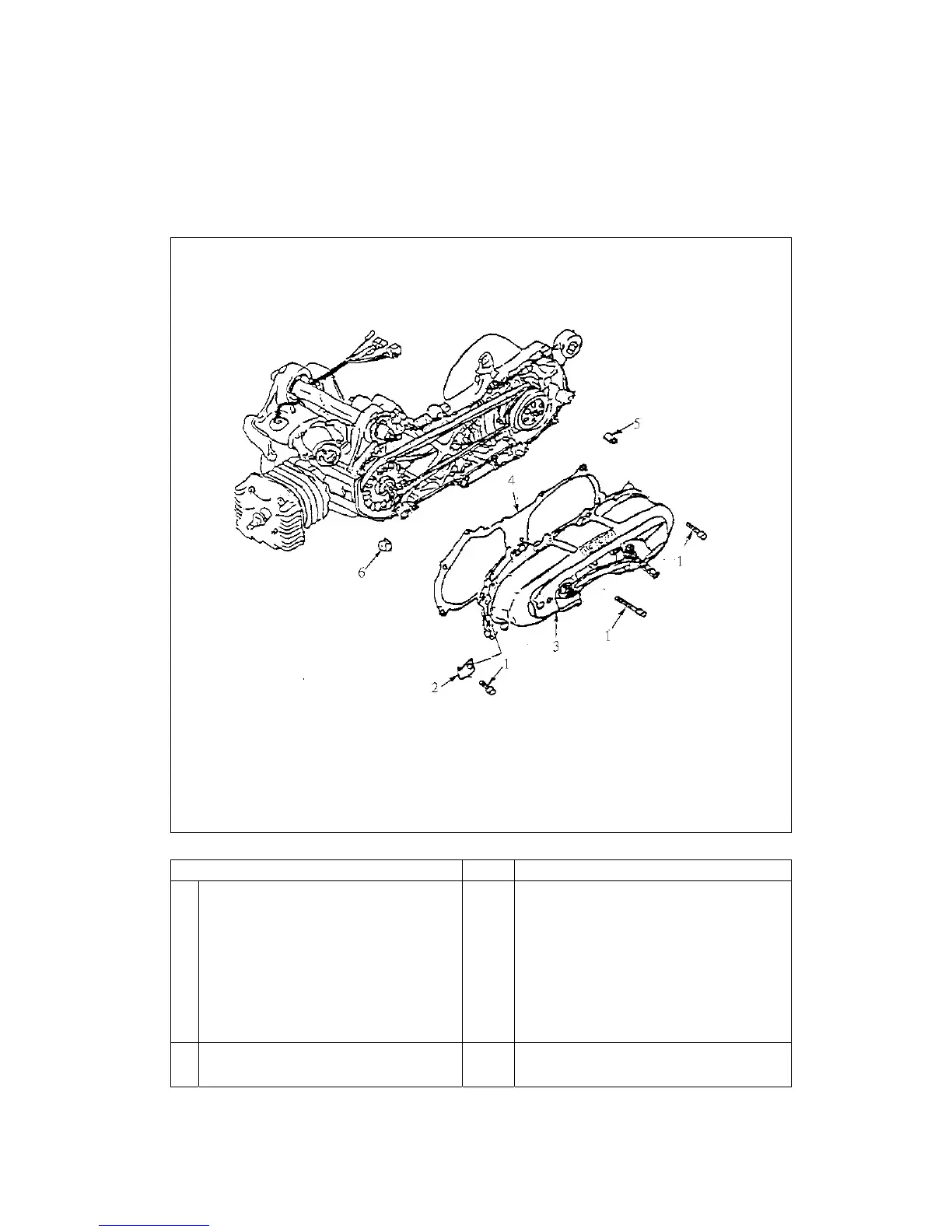

Disassembly of Left Crank Case Cover
Operation / Parts name Q’ty Remark
1
2
3
4
5
6
Disassembly
Hex socket bolt
Carburetor tube bracket
Left crank case cover
Crankcase cover gasket
Dowel pin
Grommet
12
1
1
1
2
1
Assembly
6→1
‧Operation with sequence in reverse
of disassembly.
