HER CHEE ATV-50 - Throttle Valve Disassembly and Assembly

5－
2
FUEL SYSTEM

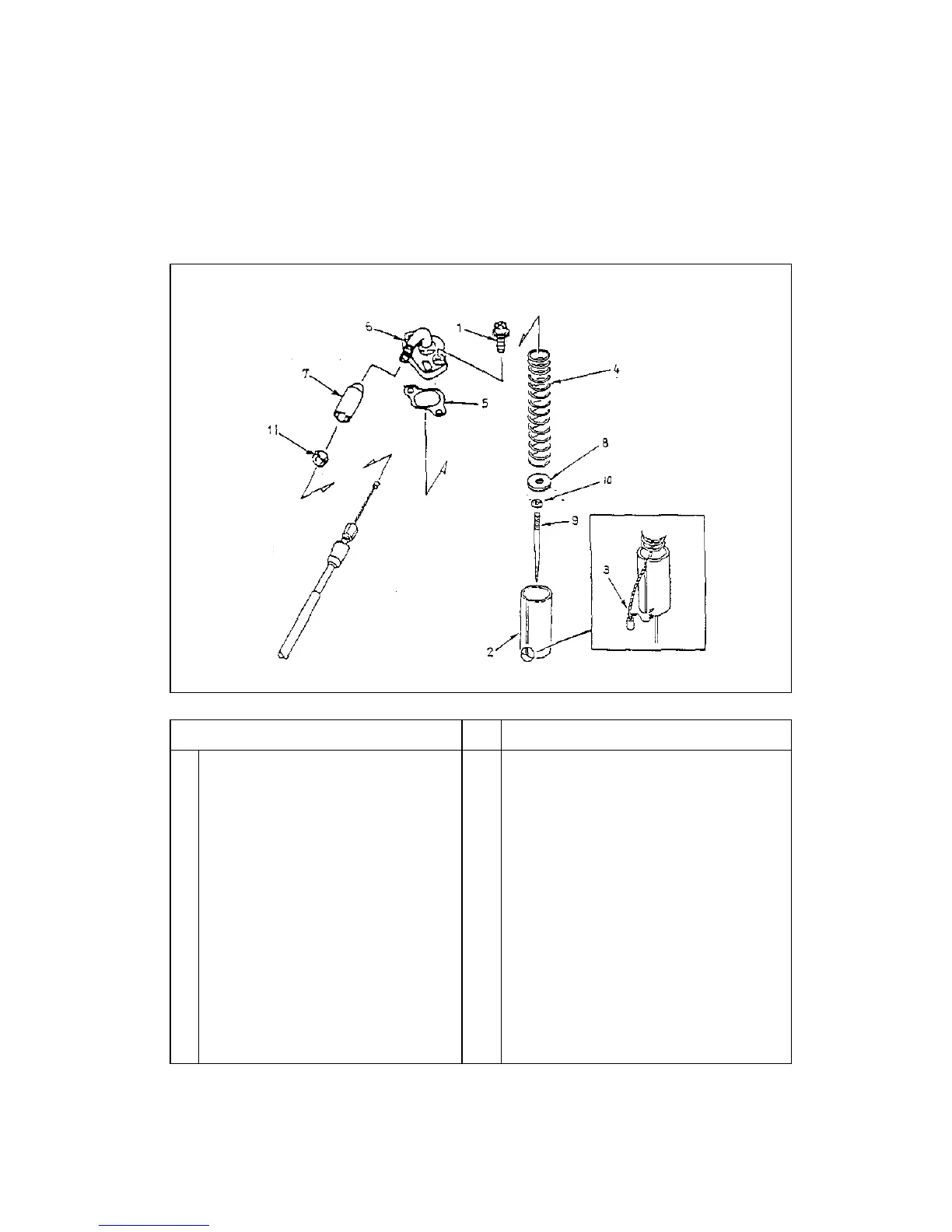

Disassembly / Assembly Valve Of Throttle
h Disassembly carburetor.
Operation / Parts Name Q’ty Remarks
1
2
3
4
5
6
7
8
9
10
11
Disassembly
Pan phillips bolt
Throttle valve
Throttle cable
Throttle valve spring
Gasket
Throttle cover
Rubber Sealing
Washer
Needle nozzle
Clamp
Adjust nut
2
1
1
1
1
1
1
1
1
1
1
＊WARNING:
Remove from guide wire of throttle
valve.
