HER CHEE ATV-50 - Suspension Arm Disassembly

11－
5
FRONT WHEEL/FRONT SUSPENSION/ FRONT BRAKE

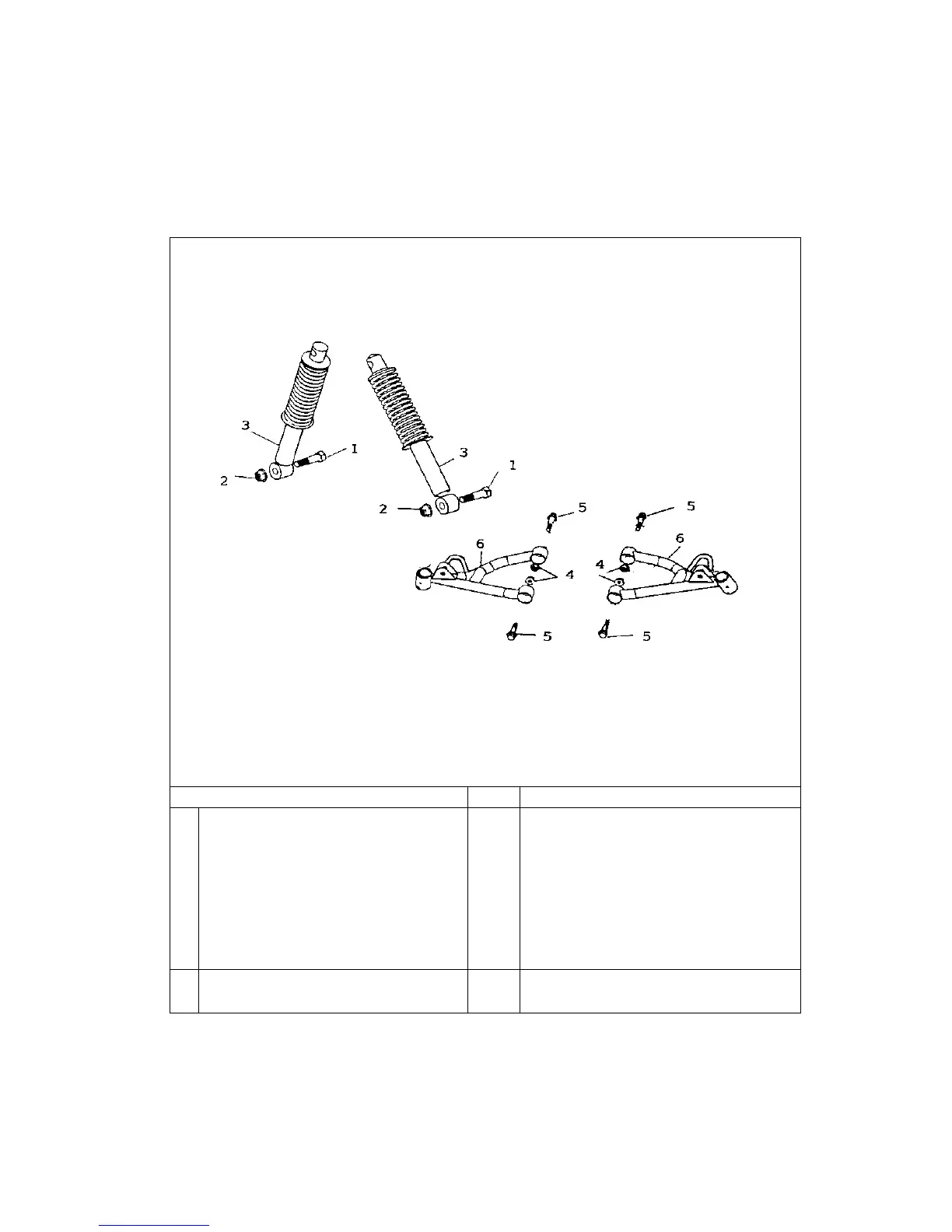

Disassembly of Suspension Arm
Operation / Parts name Q’ty Remarks
1
2
3
4
5
6
Disassembly (L/R)
Hex bolt
Hex flange nut with serration
Release front cushions
Hex flange nut with serration
Hex washer face bolt
Suspension arms
2
2
2
4
4
2
Assembly
6→1
z Assembling with sequence in
reverse of disassembly.
