HER CHEE ATV-50 - Disassembly of Oil Tank

4－
4
LUBRICANT SYSTEM

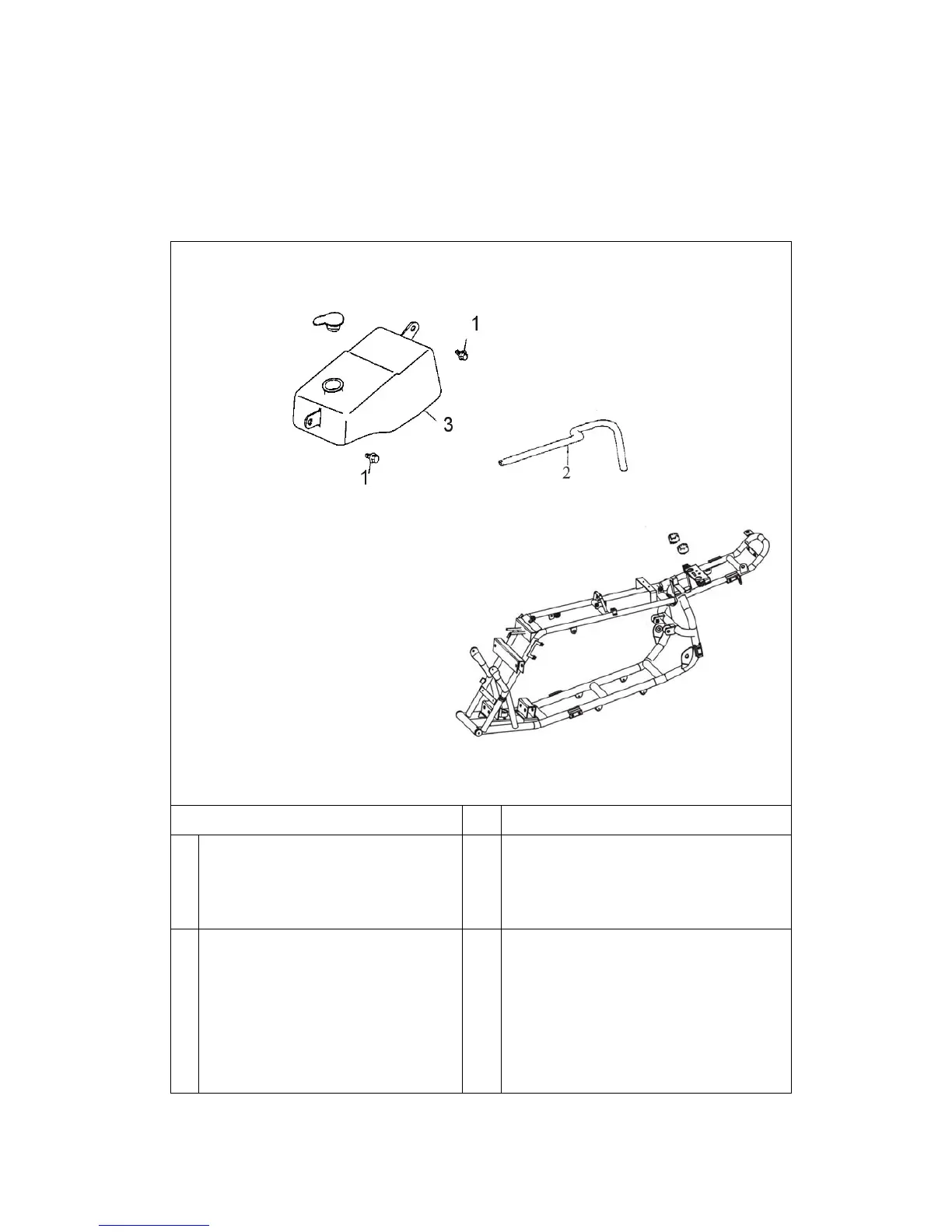

Disassembly of Oil Tank
Operation / Parts Name Q’ty Remarks
1
2
3
Disassembly
Hex Bolt
Joint of oil disassembly oil pipe
Oil tank
1
1
1
4WARNING:
Fill motor oil with clean container.
Assembly
3→1
• Operation with sequence in reverse of
disassembly.
4WARNING:
Connect correct oil pipe after
assembly , release the air in motor oil
pump.
