HER CHEE ATV-50 - Disassembly of Left Crank Case

8-2
Starter / Driving Disc / Clutch / Transmission Disc

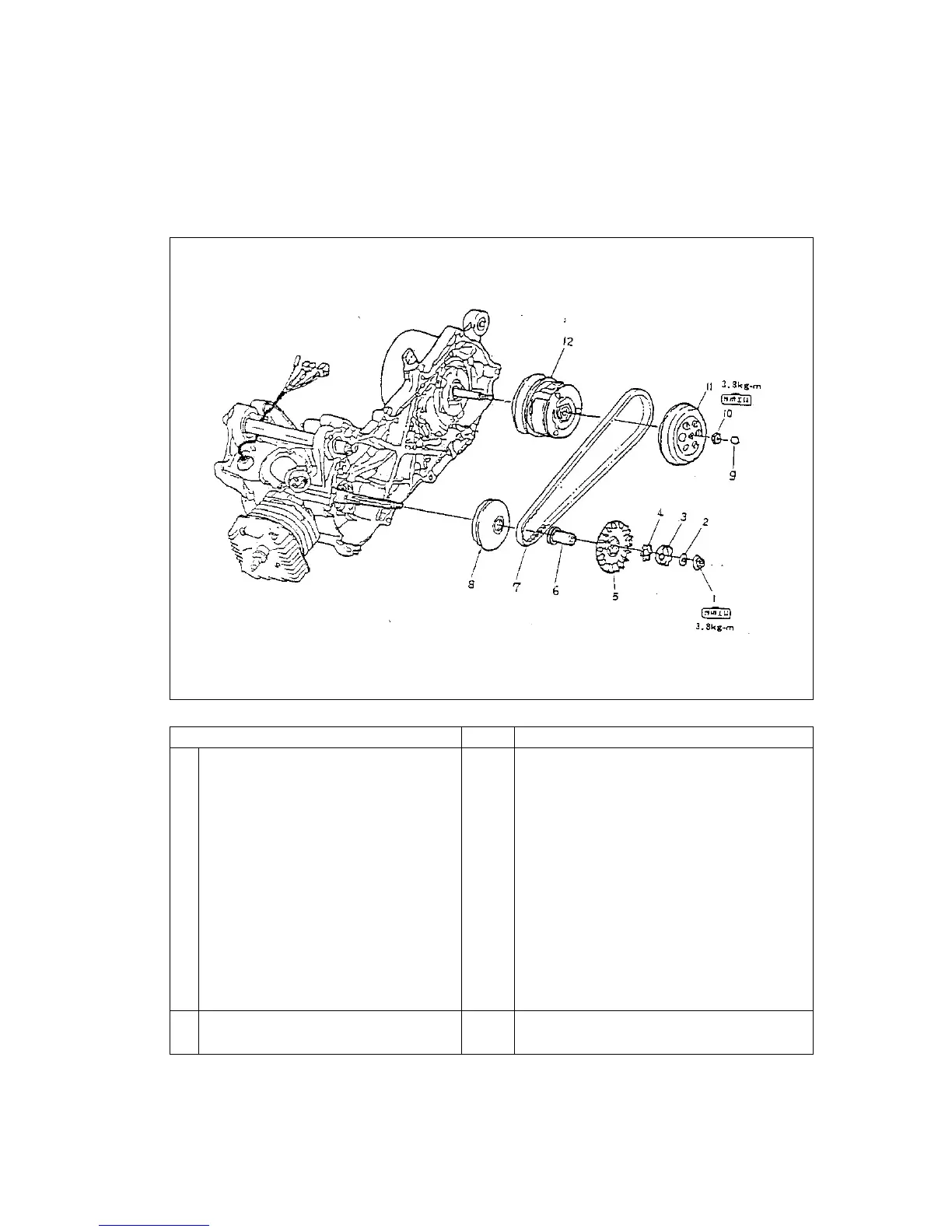

Disassembly of Left Crank Case
Operation / Parts name Q’ty Remark
1
2
3
4
5
6
7
8
9
10
11
12
Disassembly
Hex washer face bolt
Cone spring washer
One-way clutch gear
Clamp washer
Primary fixed sheave
Bushing
V-Belt
Primary sliding slot wheel
Oil ring
Hex nut
Clutch cover
Drive face ass’y
1
1
1
1
1
1
1
1
1
1
1
1
＊.WARNING:
Don’t damage transmission belt.
Assembly
12→1
‧Operation with sequence in reverse
of disassembly.
