HER CHEE ATV-50 - Primary Drive Gear; Final Reduction Mechanism Disassembly

9－
2
Final Transmission Mechanism

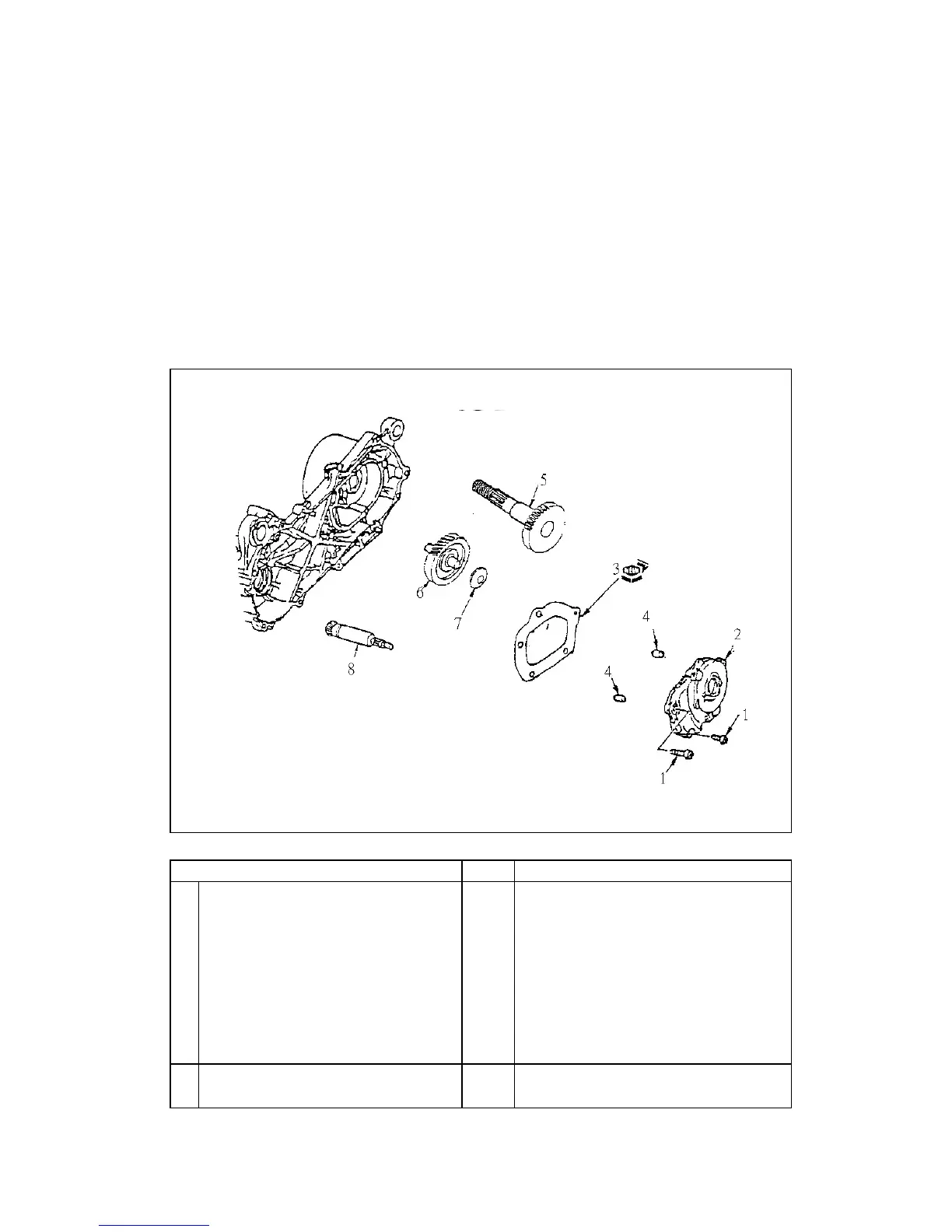

Disassembly of primary drive gear / final reduction mechanism
z Disassembly of Drive Sprocket Ass’y (Remove 1 Nylon Nut and 1 Plain Washer).
z Disassembly of clutch / drive face.
4WARNING:
First drain the oil of transmission.
Operation / Parts name Q’ty Remark
1
2
3
4
5
6
7
8
Disassembly
Bolt
Mission cover
Gasket
Dowel pin
Drive axle
Main axle comp.
Plain washer
Primary drive gear
5
1
1
2
1
1
1
1
z Check the wear & damage o
f
shaft and gear.
Assembly
8→1
z Operation with sequence in
reverse of disassembly.
