OPERATION
Programmed controller function
The programmed controller function enables the arbitrary definition of temperature / time
processes.
You may select up to 9 program segments. Operating temperature, period and air speed level
can be selected for each segment.
Termination commands
A termination command can be selected as the last program segment. The termination command
determines the function to be performed by the unit after running through the program
There are three optional termination commands:
•• " hold " = Once the program has terminated, the operating temperature set for the last
program segment is malntaned until a new operating temperature has been
selected.
* •• stOP " = Once the program has terminated, Ihe heating and blower are switched off
until the "stop" command Is cancelled.
>• •• CYCL " - Once the program has terminated, It returns to the beginning and is repeated
continuously until the "CYCL" command is cancelled.
A termination command must always be entered at the end of every program.

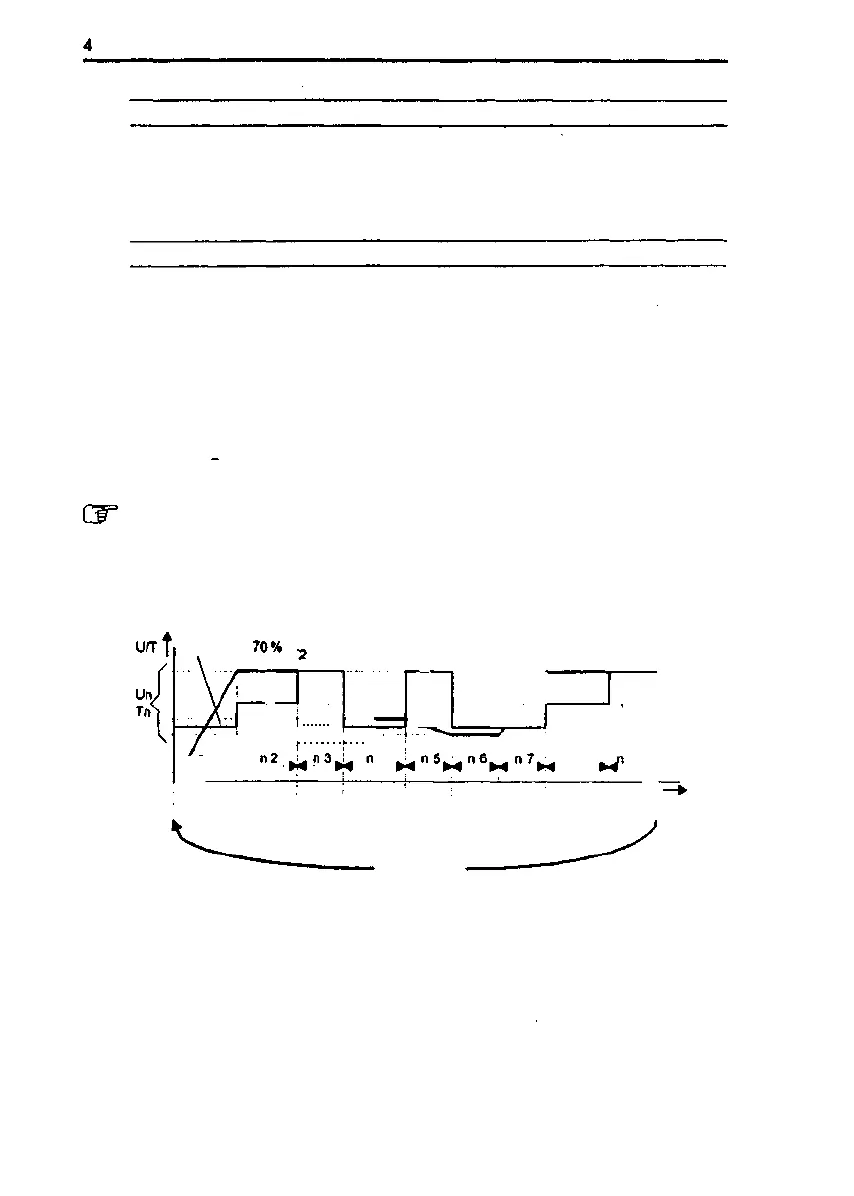

Fig. 6/3: Example of a temperature / time / ventilation program with "CYCL" termination
command
40
r
%
T1
1
M
\
7
\
.
\
S
T3
i
T4
4
100%
\
•»
T5
V
T7
/
n 8
T8
\
V
>
T9
\
11 t2 t3 14 t5 re t7 t8 t9 t
n 10«CYCL
• Definitions
n1 ... n9
n10
T 1 ... T9
11 ... t 9
Program segments
Termination commands (hold, StOP or CYCL)
Specified operating temperature (SO - 250 *C)
Specified time - program segment (0:01 - 99:0 h)
U 1 ... U 3 Specified ventilation level (approx. 40 %. approx 70 % and 100 %)
• Refer to STARTING UP WITH PROGRAMMED CONTROLLER FUNCTIONS for details.
16/34 50 042 750
Issue: May, 1994
