F
C
59
(6) Second adjuster nut (7) Joint
(i) Decrease free play (ii) Increase free play
(i)
(ii)
B
6
7
Ÿ Check the free play of front brake lever.
FREE PLAY: 10-20 mm
Ÿ If the free play is out specification turn the
adjuster nut to obtain desired free play.

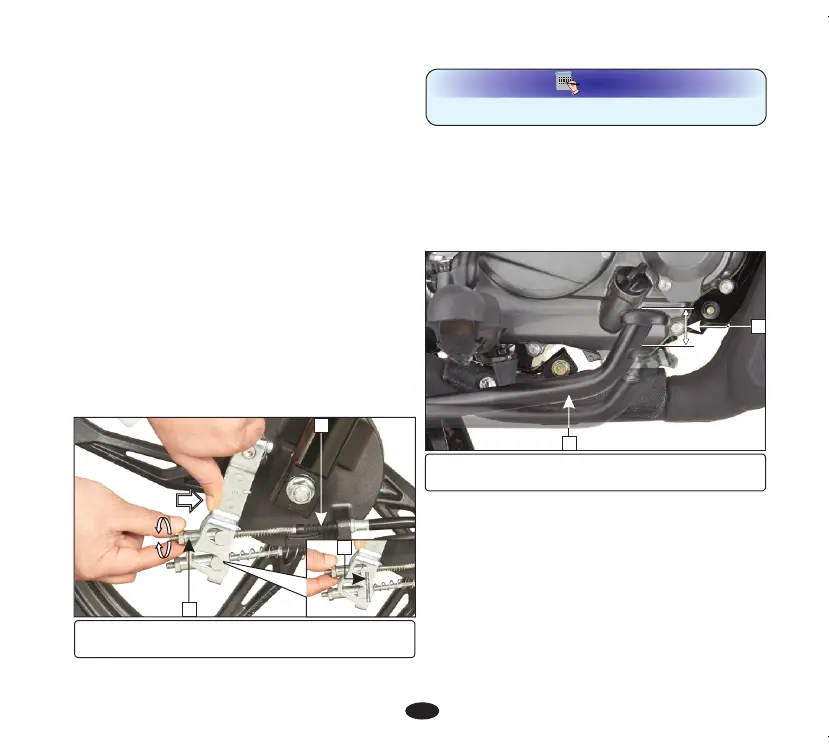

Integrated brake cable (B) on “C” side
Adjustment
•
Push the integrated brake arm (4) by hand
in the direction as shown.
•
Turn the second adjuster nut (6) until a gap
is created between joint (7) and the slot on
the first side in integrated brake arm.
•
After ensuring the gap, turn the second
adjuster nut counterclockwise by half
rotation.
•
Check the free play of rear brake pedal.
FREE PLAY: 20-30 mm
•
If the free play is out specification turn the
adjuster nut to obtain desired free play.
•
If adjustment is necessary, turn the rear
brake adjusting nut (3).
•
Make sure that the cut-out on the adjusting
nut is seated on the brake joint pin (4) after
the final adjustment has been made.
•
Apply the brake several times and check for
free wheel rotation when released.
CW- Clockwise, ACW- Anticlockwise
(e) Rear brake inspection
Adjustment
•
Park the vehicle on its main stand.
•
Measure the brake pedal (1) free play
before the brake starts to take hold.
Free play (2) should be 20-30 mm.
(1) Rear brake pedal
(2) Free play: 20-30 mm
NOTE
“F” & “C” is marked on integrated brake arm.
1
1
2
