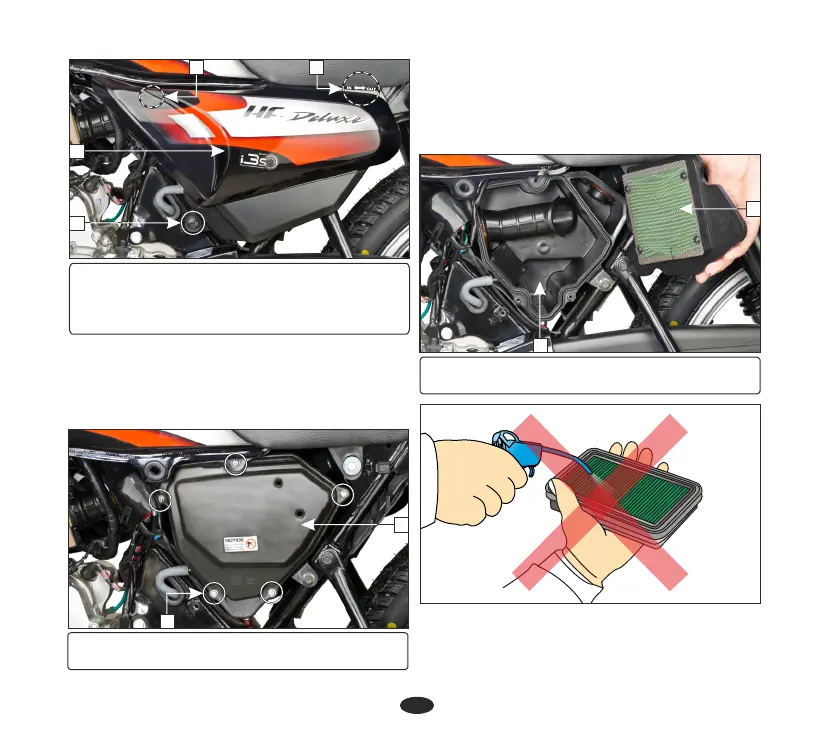

Remove the left side cover (1) by removing
side cover bolt (2). Pull out lug (3) from the
grommet and slide the cover as per direction
indicator (4).
2
1
(1) Left side cover
(2) Side cover bolt
(3) Lug
(4) Direction indicator
3 4
Ÿ Remove the air cleaner cover screws (5)
and the cover (6).
•
Remove the air cleaner element (7)
from air cleaner housing (8).
(5) Air cleaner cover screws
(6) Air cleaner cover
6
5
(7) Air cleaner element
(8) Air cleaner housing
8
7
