41
NOTE
Visit Authorised Hero MotoCorp workshop
for inspection, cleaning, lubrication and
adjustment of drive chain at every 2000 km.
CAUTION
!!
Regular adjustment and lubrication as per the
maintenance schedule would ensure high
performance and longer life.
chain slider must be replaced if it is worn to the
bottom of the cutout or wear limit (2) is

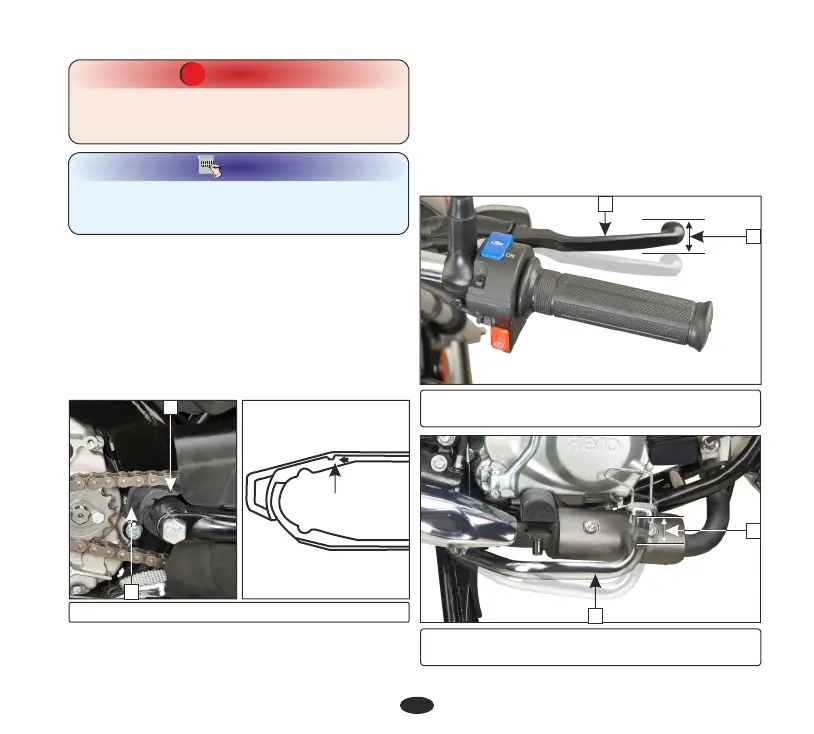

DRIVE CHAIN SLIDER INSPECTION
Check the drive chain slider (1) for wear, the
reached. For replacement, visit your
Authorised Hero MotoCorp workshop.
(Refer to “Maintenance Schedule” on
(page 28).
BRAKES
When one applies the integrated/rear brake
pedal, front & rear brakes activate jointly.
(a) Brakes (Integrated braking system)
Brakes are items of personal safety and should
always be maintained with proper
adjustments.
(1) Drive chain slider (2) Wear limit
(2) Integrated/Rear brake pedal
(3) Free play 20-30 mm
(1) Front brake lever
(3) Free play 10-20 mm
1
3
2
3
2
1
