37

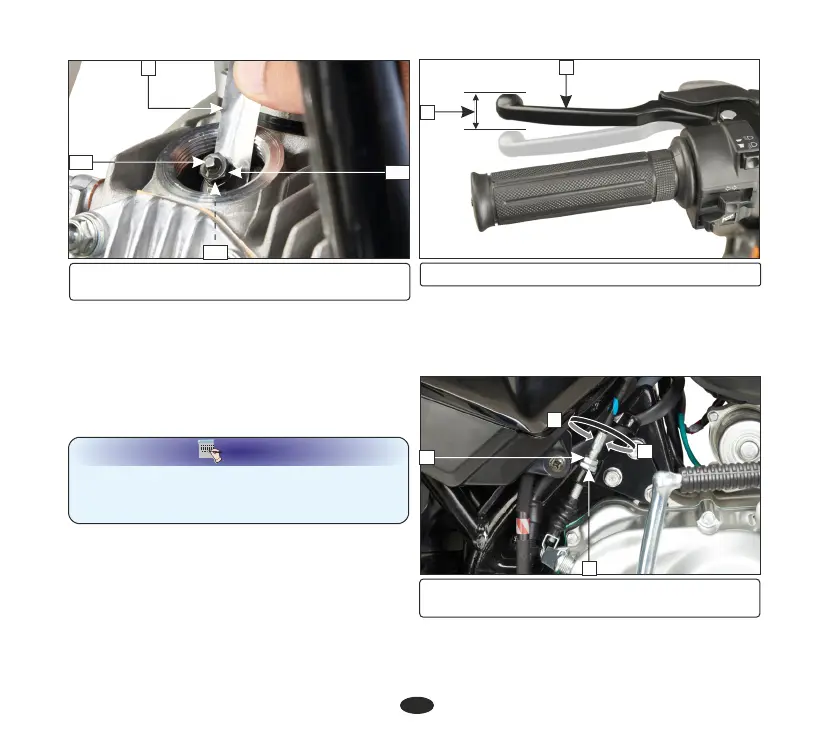

(9) Feeler gauge (10) Adjusting screw
(11) Valve stem (12) Lock nut
•
Install all parts in the reverse order of
disassembly.
•
Adjust by loosening the lock nut (12) and
turning the adjusting screw until there is a
slight drag on the feeler gauge.
•
After tightening the lock nut, check again
the clearance.
Before inserting the feeler gauge, smear a bit
of engine oil on the feeler gauge to avoid
damage to the feeler gauge.
NOTE
Clutch adjustment may be required if the
vehicle stalls when shifting into gear or tends
to creep or if the clutch slips, causing
acceleration to lag behind engine speed.
Normal clutch lever free play (1) is 10-20 mm
at the lever (2).
CLUTCH LEVER FREE PLAY
Adjustment
(1) Free play: 10-20 mm (2) Clutch lever
2
1
12
10
9
•
To adjust the free play, loosen the lock nut
(3). Turn the adjusting nut (4) to obtain the
specified free play. Tighten the lock nut and
check the adjustment.
4
3
A
B
(3) Lock nut (4) Clutch cable adjusting nut
(A) Decrease free play (B) Increase free play
11
