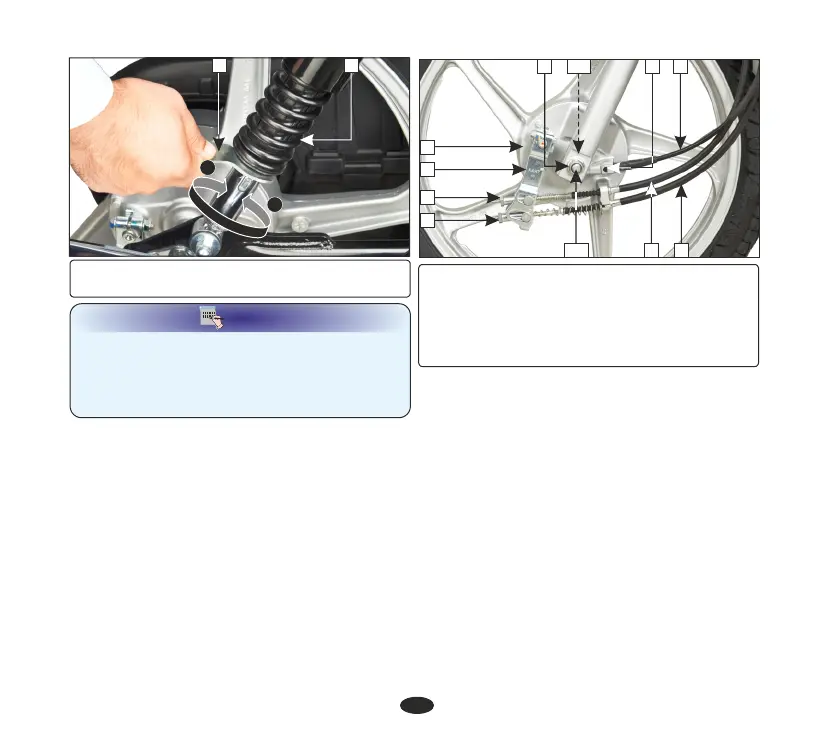

(1) Rear shock absorber (2) Pin spanner
(A) Stiffer (B) Softer
NOTE
Always adjust both the rear shock absorbers to
the same position. To adjust the rear shock
absorber (1), use the rear shock absorber
adjustment tool (Pin spanner) (2) available in
the tool kit.
A
B
2 1
• Disconnect the front brake cable (3) and
integrated brake cable (4) from the integrated
brake arm (5) and brake panel (6) by
removing the front brake adjusting nut (7)
and integrated brake adjusting nut (8).
(a) Front wheel
• Support the vehicle securely on the main
stand and raise the front wheel off the
ground.
WHEEL
Removal
• Remove the speedometer cable (1) by
pressing the tab (2) & pulling cable out
from the speedometer gearbox.
(1) Speedometer cable (2) Tab
(3) Front brake cable (4) Integrated brake cable
(5) Brake arm (6) Brake panel
(7) Front brake adjusting nut
(8) Integrated brake adjusting nut
(9) Axle nut (10) Axle (11) Side collar
3
6
5
7
111
8
4
9
10
2
Installation
•
After installing wheel, apply the brake
several times and check for free wheel
rotation when released.
•
Remove the axle nut (9).
•
Remove the axle (10) and side collar (11).
•
Reverse the removal procedure.
•
Adjust the front brake free play and
integrated brake free play (page 42).
•
Remove the wheel.
•
Tighten the axle nut.
Axle nut torque: 5.4 kgf-m
•
Install the front wheel by ensuring that the
lug (12) on the left fork is located in the slot
(13) in the brake panel.
