46

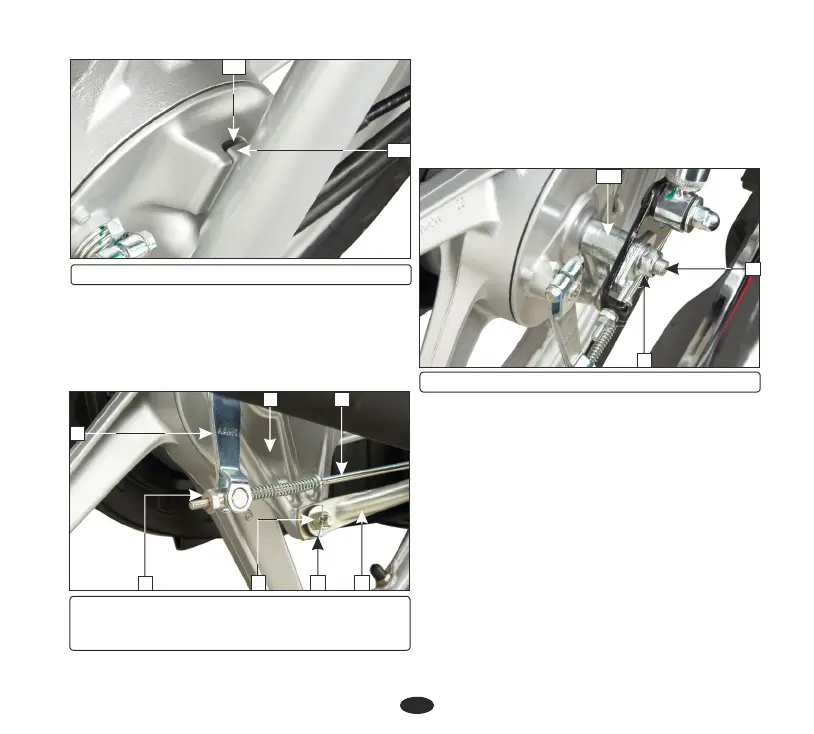

(12) Lug (13) Slot
•
Support the vehicle securely on the main
stand and raise the rear wheel off the
ground.
Removal
(b) Rear wheel
13
12
•
Remove the rear brake adjusting nut (1)
and disconnect the brake rod (2) from the
brake arm (3) by pushing down the brake
pedal. Disconnect the brake stopper arm
(4) from the brake panel (5) by removing
split pin (6) and lock nut (7).
3
6 4
2
(1) Rear brake adjusting nut (2) Brake rod
(3) Brake arm (4) Brake stopper arm
(5) Brake panel (6) Split pin (7) Lock nut
1
5
7
(8) Axle nut (9) Axle (10) Collar
10
8
9
•
Remove the wheel.
•
Remove the rear axle nut (8).
•
Pull out the axle (9) and collar (10).
•
Reverse the removal procedure
Axle nut torque: 5.4 kgf-m.
Installation
Brake stopper arm nut torque:
2.2 kgf-m
•
After installing the wheel, apply the brake
several times and check for free wheel
rotation when released.
Ÿ Adjust the rear brake free play (page 42)
and drive chain slackness (page 39).
