(1) Arrow (2) Brake arm
(3) Reference mark (4) Brake panel
3

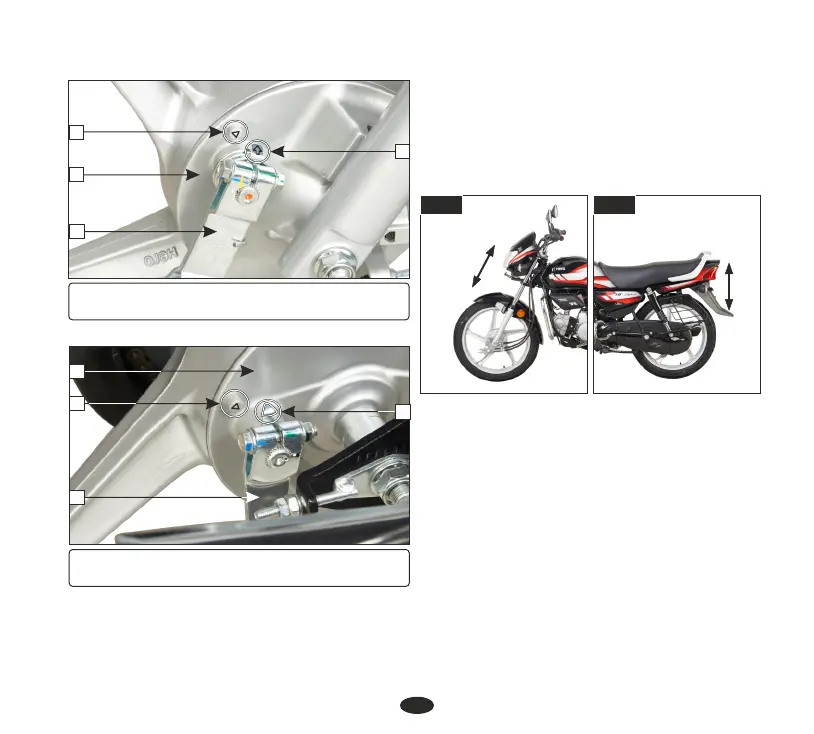

Front brake wear indication
(1) Arrow (2) Brake arm
(3) Reference mark (4) Brake panel
2
3
4
1
Rear brake wear indication
Front and rear suspension inspection
•
Check the front forks by locking the front
brake and pumping the front fork up and
down vigorously. The suspension action
should be smooth and there should be no oil
leakage.
SUSPENSION
Front Rear
Rear shock absorber adjustment can be made
according to the load/road conditions.
• Check the rear shock absorber by pushing
hard downwards on rear grip while the
vehicle is not parked on stand. The
suspension action should be smooth and
there should be no oil leakage.
Rear shock absorber adjustment
• In direction B: Softer
• In direction A: Stiffer
