CAUTION
!!
•
Do not attempt to start or ride the vehicle
without a charged battery, it can cause
fusing of the bulbs and permanent damage
to certain electrical components.
•
Turn the ignition switch "OFF" before
checking or replacing the fuse to prevent
accidental short-circuiting.

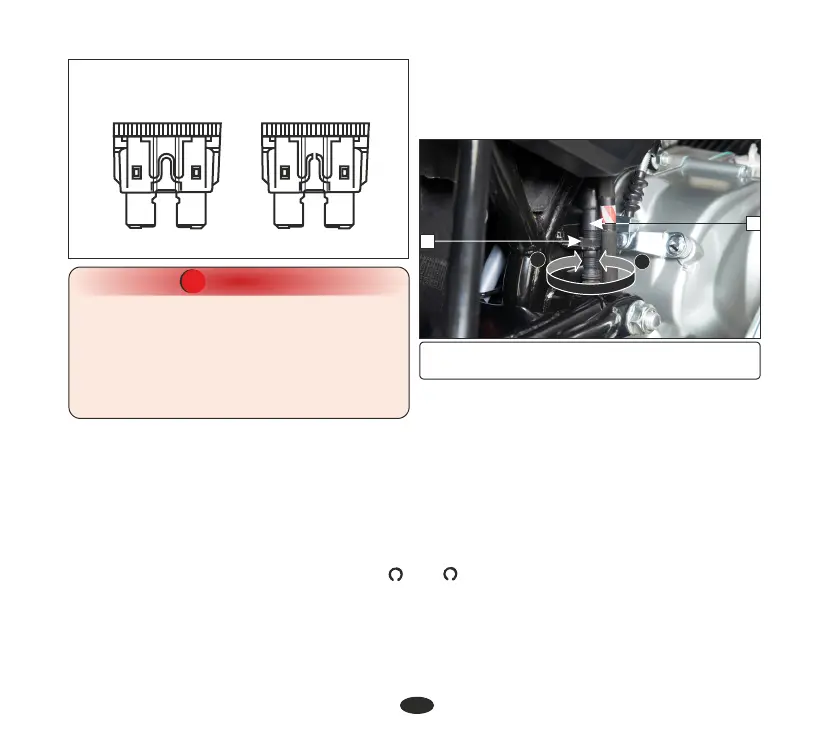

The stop lamp switch (1) must be adjusted so
that stop lamp will glow when rear brake is
applied. Rear brake free play (page 42)
• Turn the ignition switch to the “ON” ( )
position.
• Turn the adjusting nut (2) to position stop
lamp switch at a point where the stop lamp
will glow just before the brake pedal is
STOP LAMP SWITCH
should be adjusted before performing stop
lamp switch adjustment. The procedure for
adjusting stop lamp switch is as follows:
1
A
B
2
depressed to the limit of its free play. Turn
the adjusting nut in direction (A) to advance
switch timing or in direction (B) to retard
switch timing.
(1) Stop lamp switch (2) Adjusting nut
(A) Advance (B) Retard
Headlamp is factory preset. However in case
of adjustment required, please follow the steps
as given below:
•
Adjust the headlamp beam vertically
by loosening the bolt & move the headlamp
unit forward & backward for correct focus
adjustment.
HEADLAMP ADJUSTMENT FOCUS
•
Headlamp adjustment is done by the
headlamp adjusting bolt (1) located below
headlamp.
•
Park the vehicle on level ground.
•
Turn the ignition switch to “ON” position
( ) and start the engine.
52
