Remove the headlamp bulb (4) without
turning.
(2) Dust cover (3) Clip
2
3
•
Install a position lamp assembly in the
reverse order of removal.
•
Insert hand from body cover front side,
above front fender area and remove turn
signal bulb holder (1) by turning counter
clockwise.
(c) Front turn signal bulb
•
Remove the bulb (2) by turning it to
counterclockwise direction.
(b) Position lamp assembly
•
Disconnect the position lamp connector (1).
•
Remove the front center cover (page 38).
•
Remove the screws (2) and remove the
position lamp assembly (3) from front center
cover.

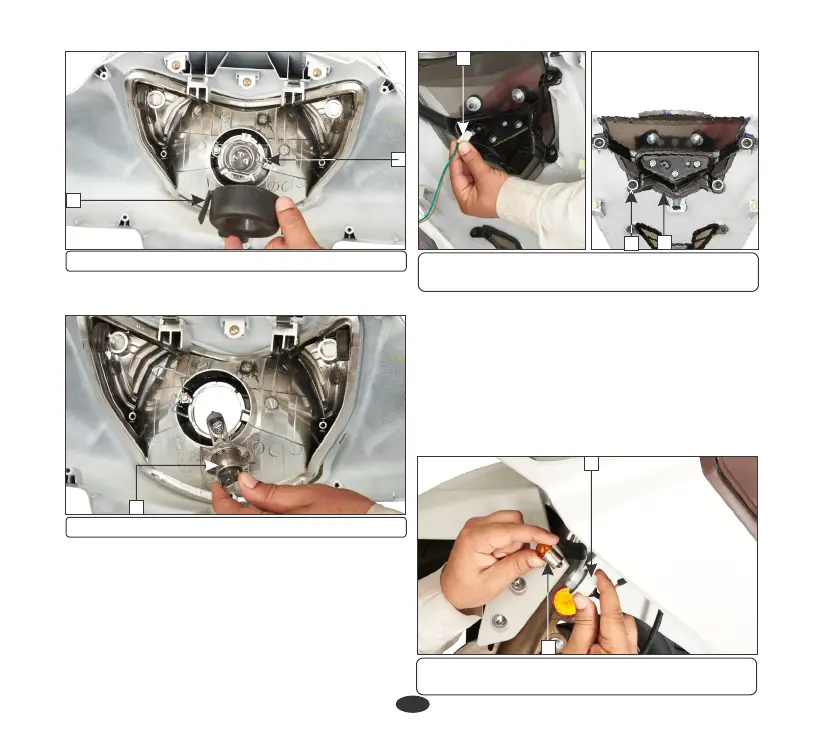

(1) Front turn signal lamp holder (1)
(2) Front turn signal lamp bulb (2)
2
1
(4) Headlamp bulb
4
•
Install a new bulb in the reverse order of
removal.
(1) Position lamp connector (2) Screws
(3) Position lamp assembly
1
3
2
