8
NOTE: HS-1 and HS-2 receivers are equipped with an
internal antenna.
The receiver wiring is critical for proper system
operation. Make all connections with good quality
contacts or solder joints to ensure proper electrical
contact.
Supply voltage and ground wiring are crucial and must
be connected to reliable connecting circuitry. Do not
use a chassis ground for this equipment. The ground
wire must be connected directly to the crane/machine’s
ground.
The output control signals to proportional controls
should be routed separately from any wiring that could
produce transient voltage interference. Interference or
"induced voltage spikes" could cause erratic
performance of the controls.

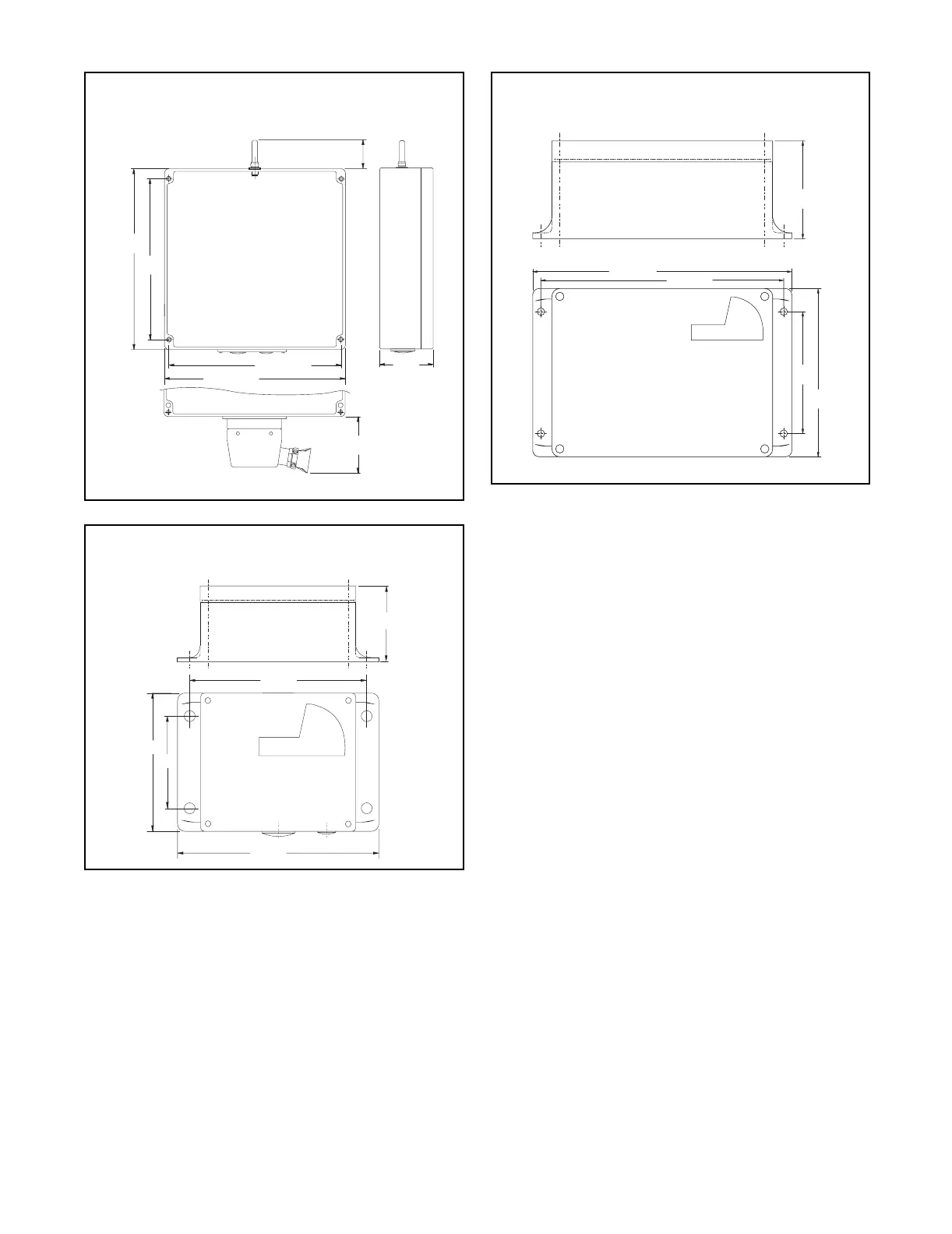

400.0
(16.00)
356.0
(14.25)
400.0 (16.00)
381.5 (15.25)
120.0
(4.80)
125
(5.00)
60
(2.38)
mm (in)
Antenna must be vertical
(pointing up).
Area must be free of
obstructions
Optional Quick-Disconnect Plug
400 x 400 Receiver
77.0
(3.08)
166.0 (6.64)
114.0
(4.56)
63.0
(2.52)
146.5 (5.86)
mm (in)
Surrounding area must be
free of obstructions
HS-1 Receiver
231.0 (9.24)
116.0
(4.64)
160.0
(6.40)
246.5 (9.86)
93.0
(3.72)
mm (in)
HS-2 Receiver
Surrounding area must be
free of obstructions
