HF2211A Serial Server Device User Manual
http://www.iotworkshop.com -
11
-
Table 4. RJ45 Interface
Pin Number
Name
Description
1
TX+
Transfer Data+
2
TX-
Transfer Data-
3
RX+
Receive Data+
4
PHY-VCC
Transformer Tap Voltage
5
PHY-VCC
Transformer Tap Voltage
6
RX-
Receive Data-
7
N.C.
None Connect
8
N.C.
None Connect
2.6. Mechanical Size
The dimensions of HF2211A are defined as following picture (mm):

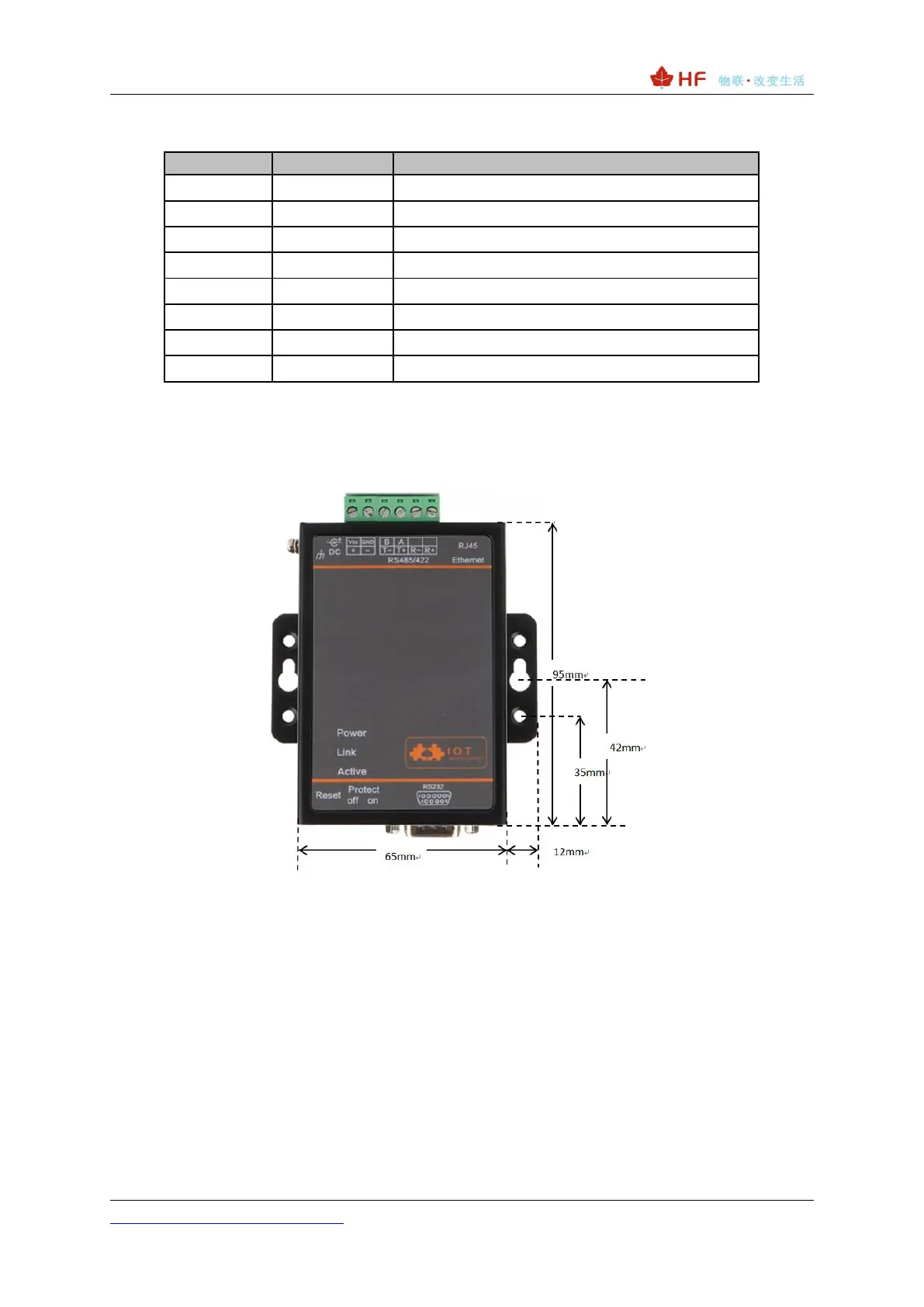

Figure 7. HF2211A Mechanical Dimension
2.7. Rail Mounting
We support to provide rail for mounting as the following picture.
