2. HARDWARE INTRODUCTION
The HF2211A unit is a complete solution for serial port device connecting to network. This powerful
device supports a 10/100BASE-T Ethernet connection, a reliable and proven operating system stored
in flash memory, an embedded web server, a full TCP/IP protocol stack, and standards-based (AES)
encryption.
2.1. Interface Definition

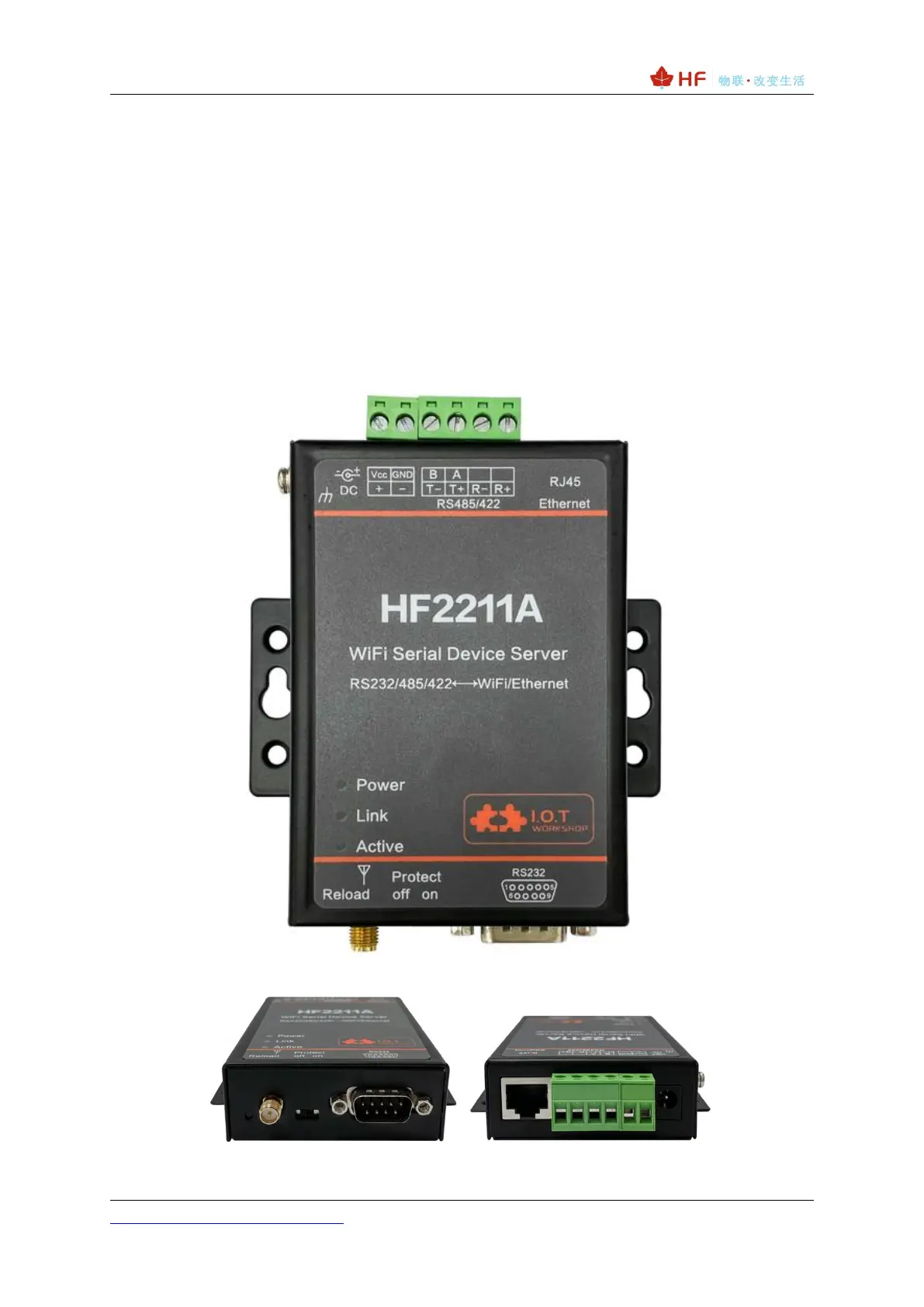

Figure 2. HF2211A Interface
