HF HF2211A - STA Wireless Network; Figure 12. General AP Network

HF2211A Serial Server Device User Manual
http://www.iotworkshop.com -
14
-

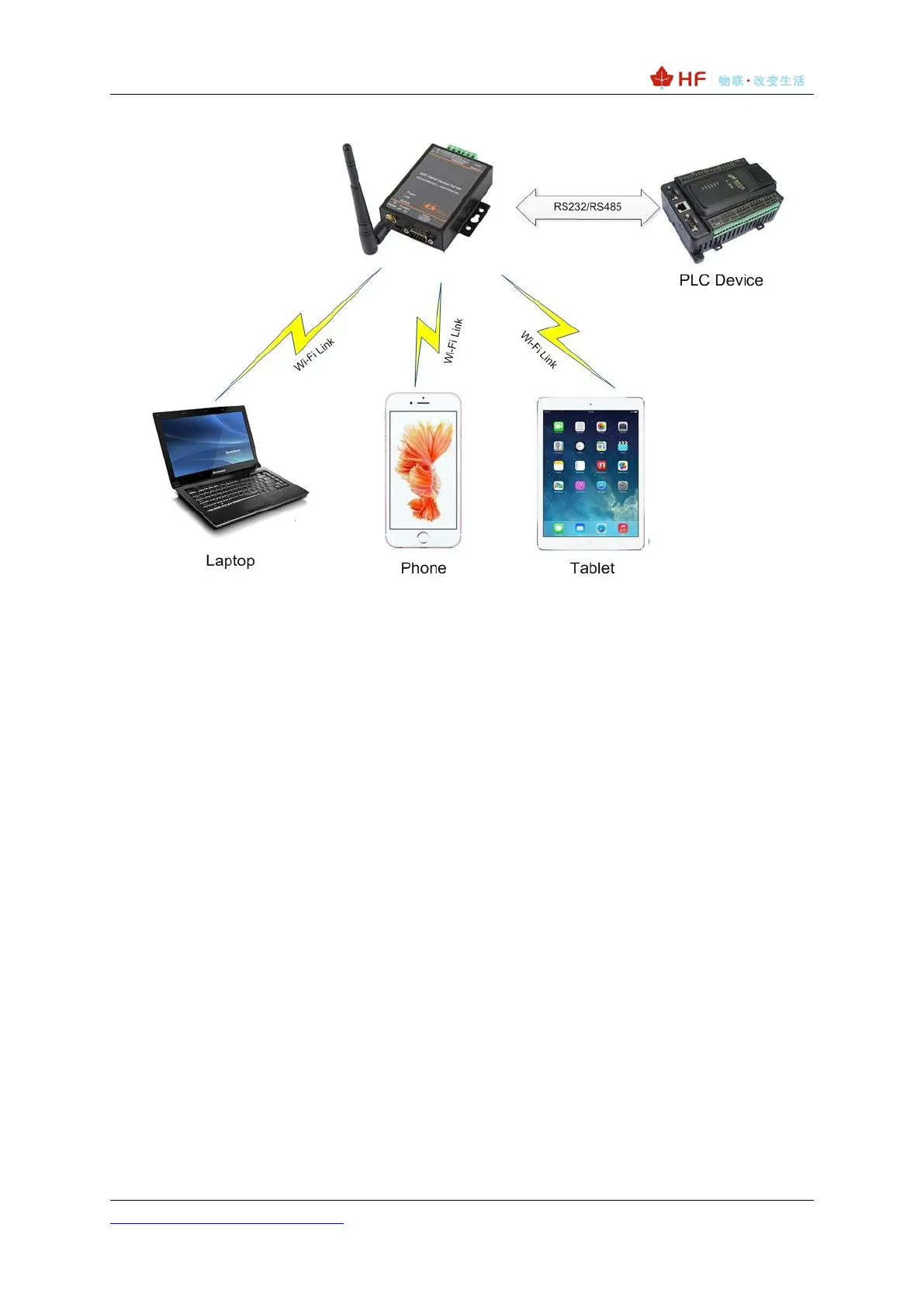

Figure 12. General AP Network
3.1.2. STA Wireless Network
Take the following picture as example. When router works in AP mode, HF2211A connects to the
user’s devices by RS232/RS485 interface. In this topology, the whole wireless network can be easily
stretched.
