HF HF2411 - Figure 7. HTTP GET Request Example

4G_2G DTU Products Function
http://www.iotworkshop.com - 12 -

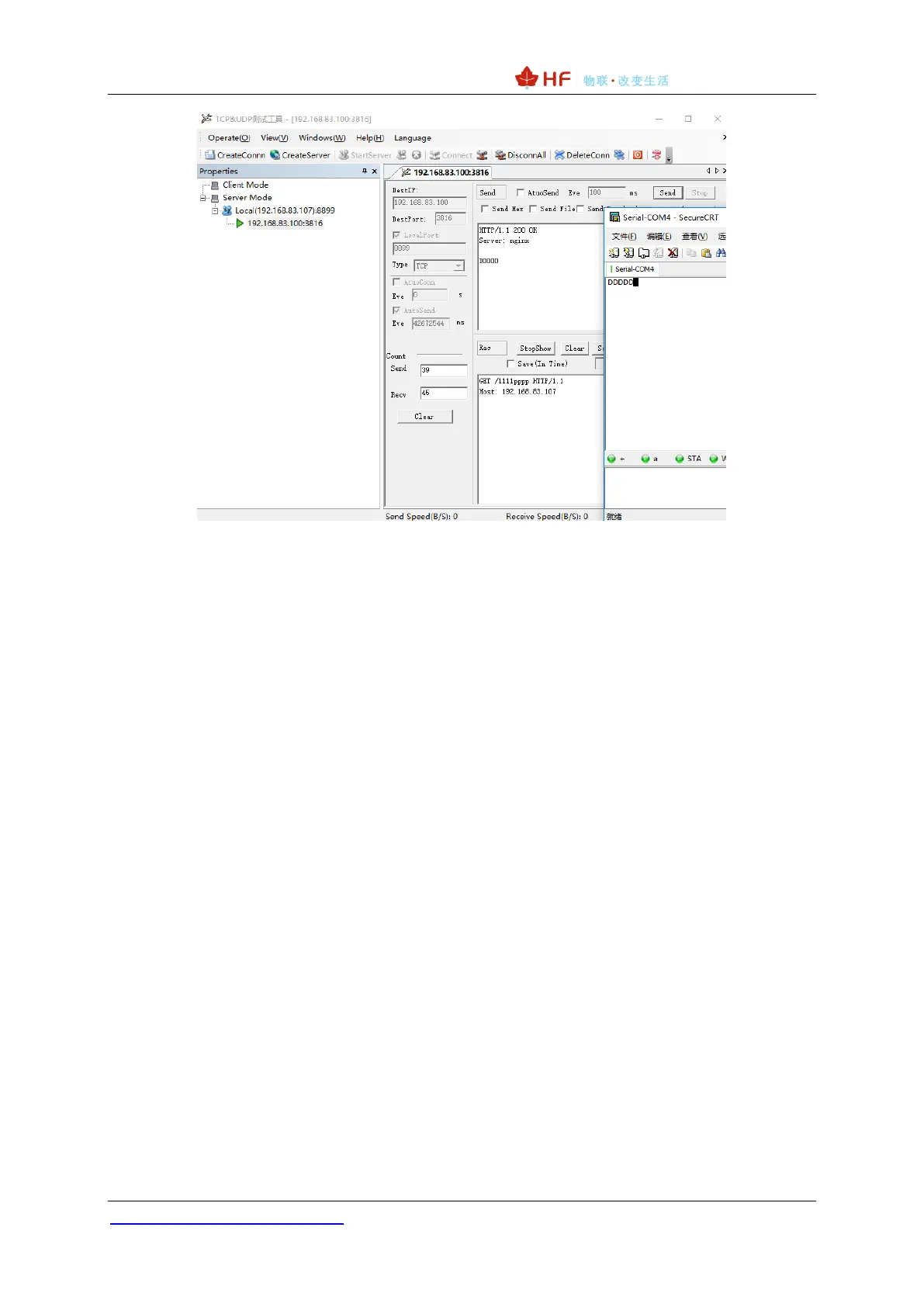

Figure 7. HTTP GET Request Example
Product will send the below data to HTTP Server when UART receive “pppp” data for POST
request.
POST /1111 HTTP/1.1
Host: 192.168.83.107
Content-Length:4
pppp
Product will output “DDDD” when get response from the HTTP server.
HTTP/1.1 200 OK
Content-Length: 4
Connection: close
DDDD
