4G_2G DTU Products Function
http://www.iotworkshop.com - 14 -

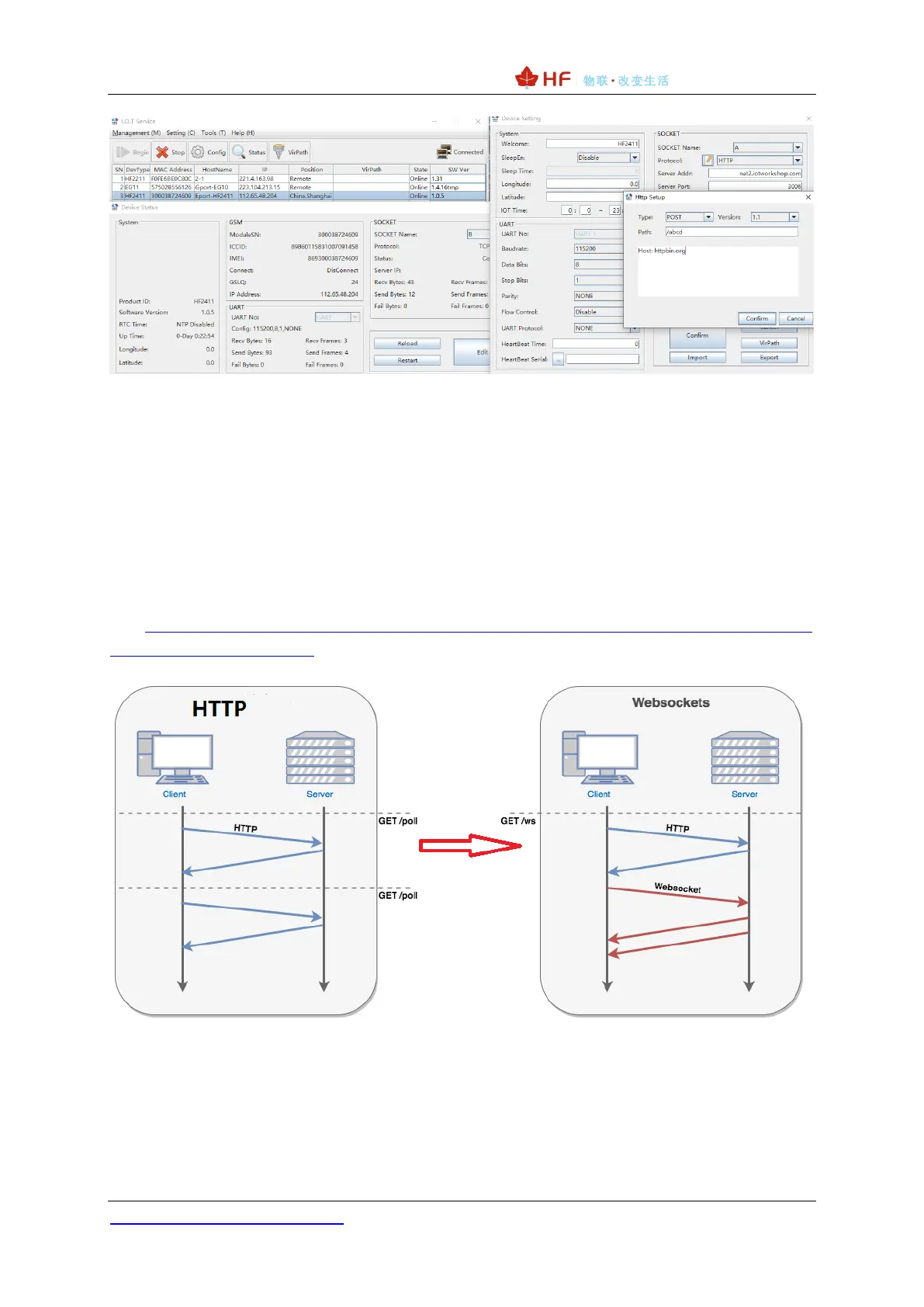

Figure 10. IOTService Remote Set HTTP Parameter
1.2.4. SOCKA WebSocket Mode
Device support WebSocket Client send data to WebSocket Server. (Use IOTService or Webpage
to config). When in WebSocket Mode, device side will auto add WebSocket protocol header to server
when receive UART data. And remove the protocol header and send the content to UART.
More WebSocket Case refer to following link.
http://www.hi-flying.com/download-center-1/application-notes-1/download-item-industry-products-
application-manual-20180415
Figure 11. Websocket Basic Concept
