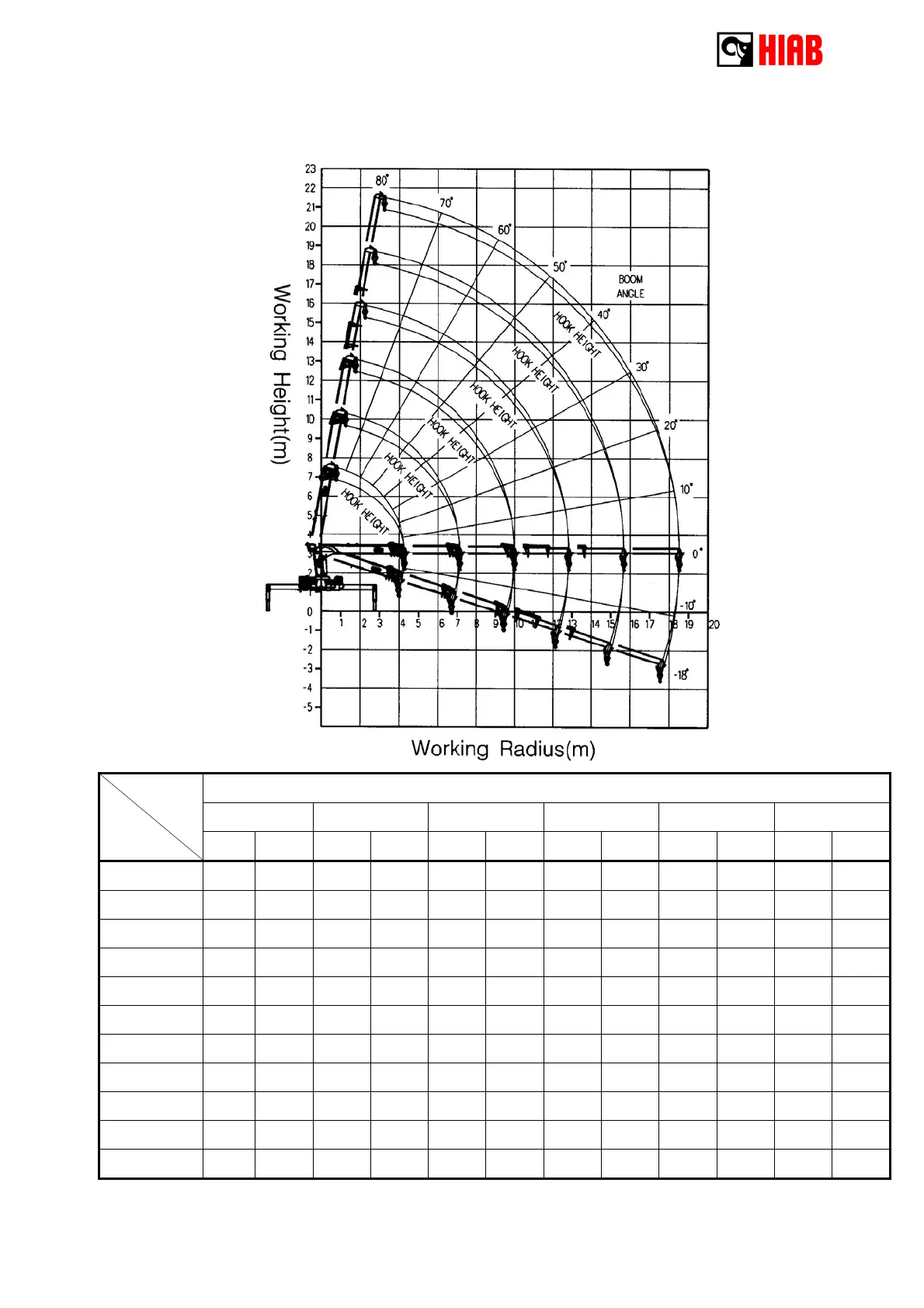

HIAB 160TM - 4 - 3 Lifting capacity table & working radius

32
4 - 3 Lifting capacity table & working radius
boom
angle
BOOM (m)
1
st
boom 2
nd
boom 3
rd
boom 4
th
boom 5
th
boom 6
th
boom
R(m) Q(kg) R(m) Q(kg) R(m) Q(kg) R(m) Q(kg) R(m) Q(kg R(m) Q(kg)
80˚
0.63
6,500
1.13 6,000 1.62 4,500 2.12 2,400 2.61 1,800 3.11 920
70˚
1.41 6,500 2.38 4,380 3.36 3,050 4.33 2,310 5.31 1,800 6.28 920
60˚
2.14 5,730 3.57 3,170 4.99 2,170 6.42 1,620 7.84 1,270 9.27 920
50˚
2.80 4,750 4.63 2,560 6.46 1,740 8.30 1,280 10.13 980 11.96 800
40˚
3.37 4,170 5.55 2,200 7.74 1,480 9.92 1,080 12.10 820 14.29 640
30˚
3.83 3,760 6.30 1,950 8.77
1,290
11.24 930 13.70 700 16.17 540
20˚
4.17 3,450 6.85 1,750 9.53 1,150 12.21 820 14.88 610 17.56 460
10˚
4.38 3,160 7.19 1,580 9.99 1,020 12.80 720 15.61 530 18.41 400
0˚
4.45 2,870 7.30 1,400 10.15 890 13.00 620 15.85 440 18.70 320
-10˚
4.38 2,500 7.19 1,170 9.99 720 12.80 490 15.61 340 18.47 240
-18˚
4.22 2,120 6.93 940 9.64 550 12.36 360 15.07 240 17.78 160
